【Godot】Comprehensive Guide to Area2D in Godot Engine: Fundamentals of Range Detection and Trigger Implementation

Introduction: Why Range Detection Matters

In game development, implementing range detection and triggers is essential for enriching player interaction with the game world. Examples include enemy character "detection" ranges for finding players, ranges where items can be "collected," and mechanisms that trigger events when entering specific areas—all built on range detection technology.

In Godot Engine, the Area2D node handles these range detection and trigger roles. This article provides a comprehensive explanation from basic Area2D usage to practical trigger implementations like enemy detection ranges and item collection, targeting beginners to intermediate developers.

What is Area2D? Difference from Physical Collisions

Area2D is a node for defining regions (areas) in 2D space. The main purpose of this node is detecting when other objects have "entered," "exited," or are "overlapping" with that region.

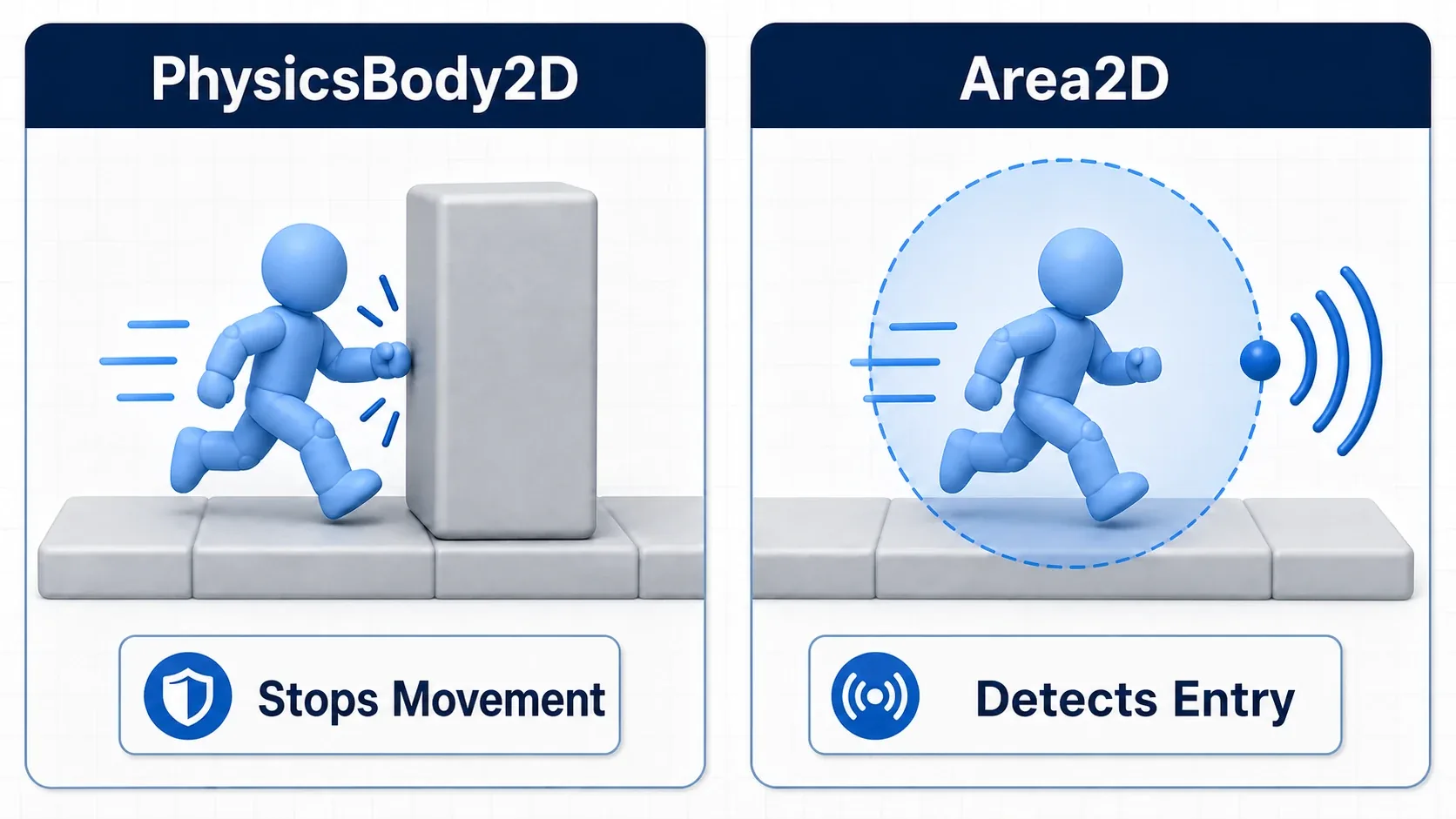

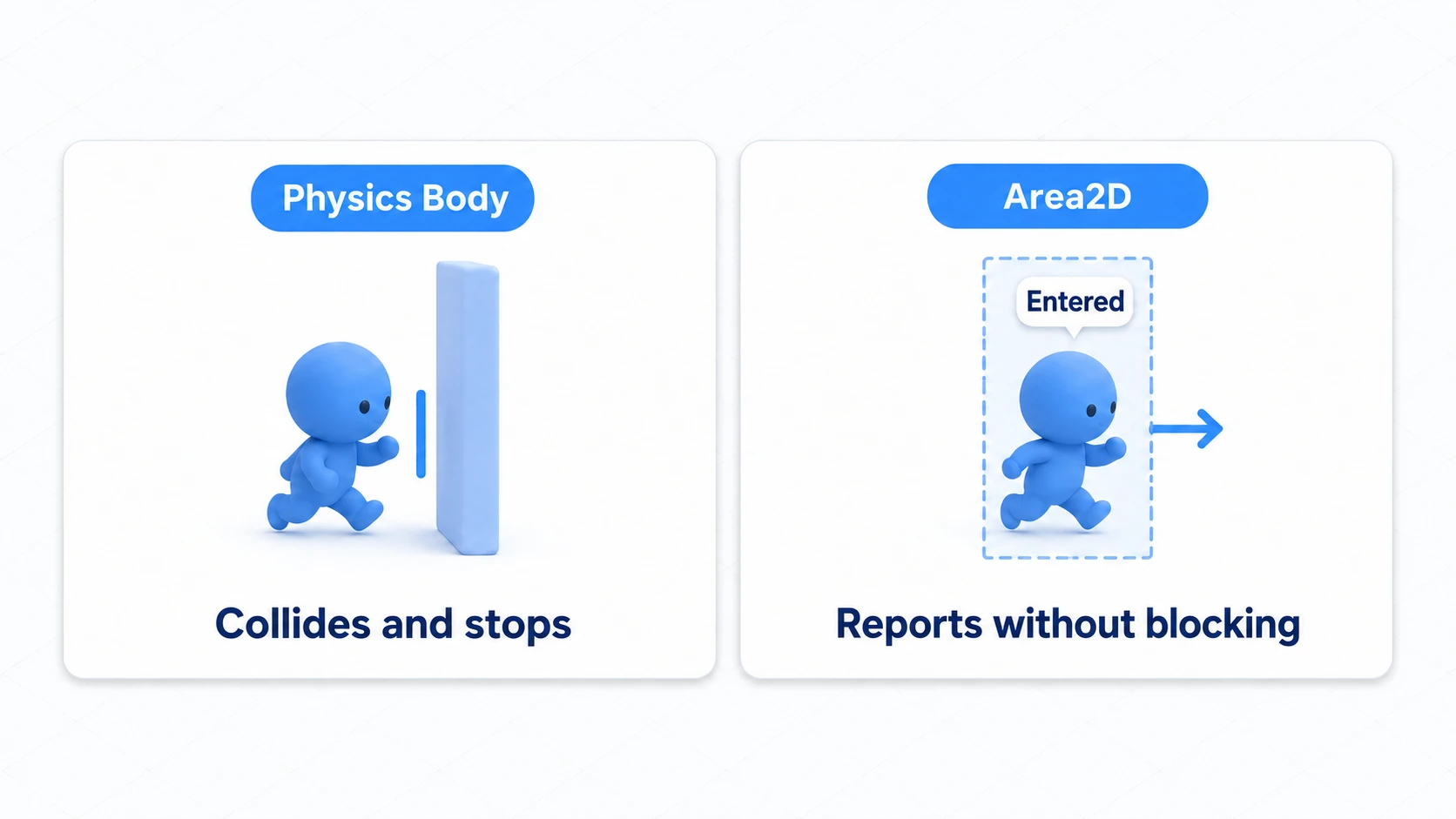

The most important point is that Area2D does not process physical collisions. This means that while CharacterBody2D or RigidBody2D are "pushed back" by the physics engine, Area2D simply functions as a "passable sensor."

Node	Main Purpose	Physical Behavior	Detection Capability
CharacterBody2D	Control of player or moving objects	Has collision response from physics engine	Collision detection only
RigidBody2D	Objects following physics laws (boxes, etc.)	Has collision response from physics engine	Collision detection only
Area2D	Range detection, triggers, debuff areas, etc.	No collision response	Detects objects within range

To make Area2D functional, you must have CollisionShape2D or CollisionPolygon2D as child nodes. These shapes visually and physically define the "range" that Area2D detects.

Key to Trigger Implementation: Understanding Signals

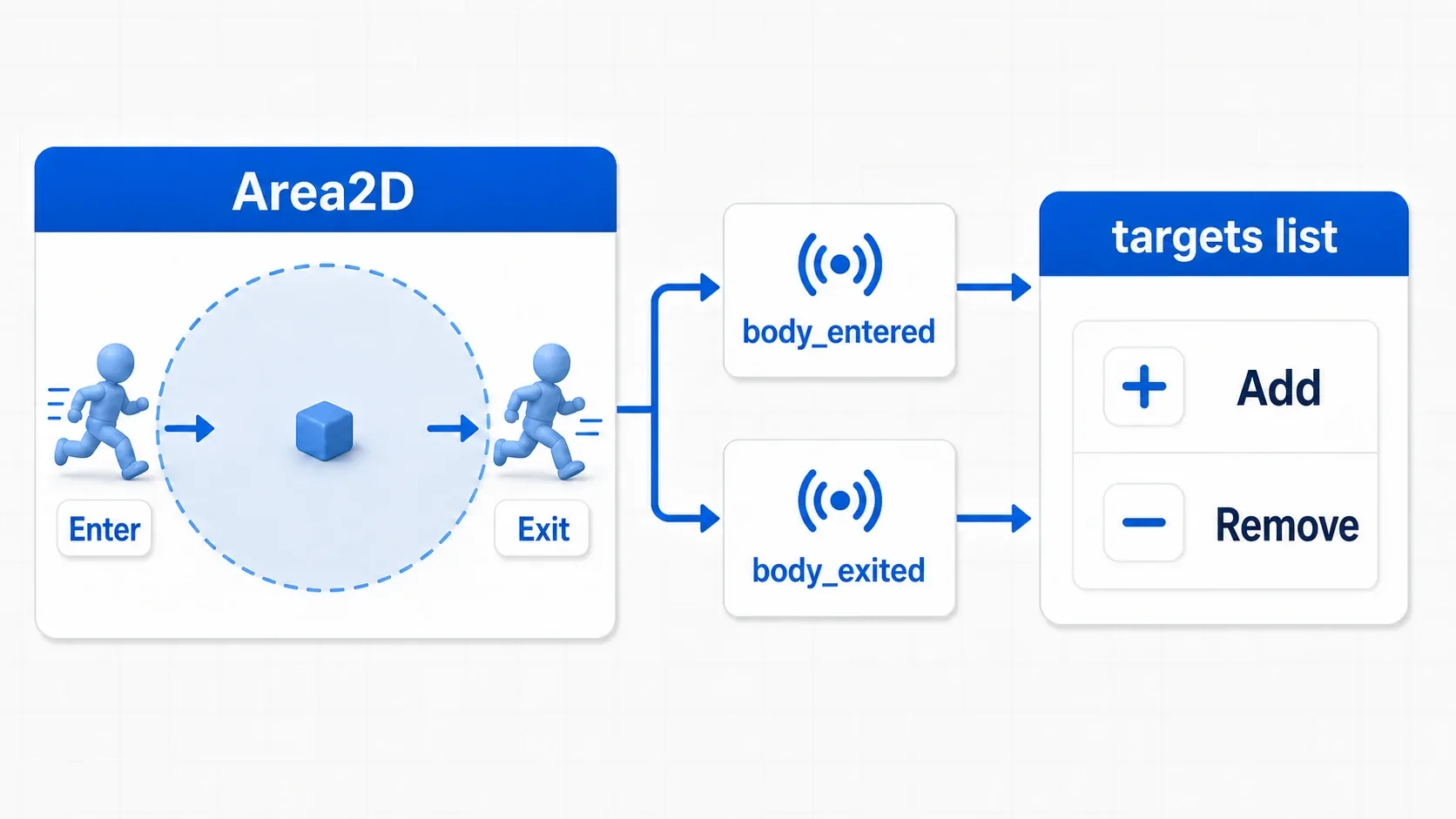

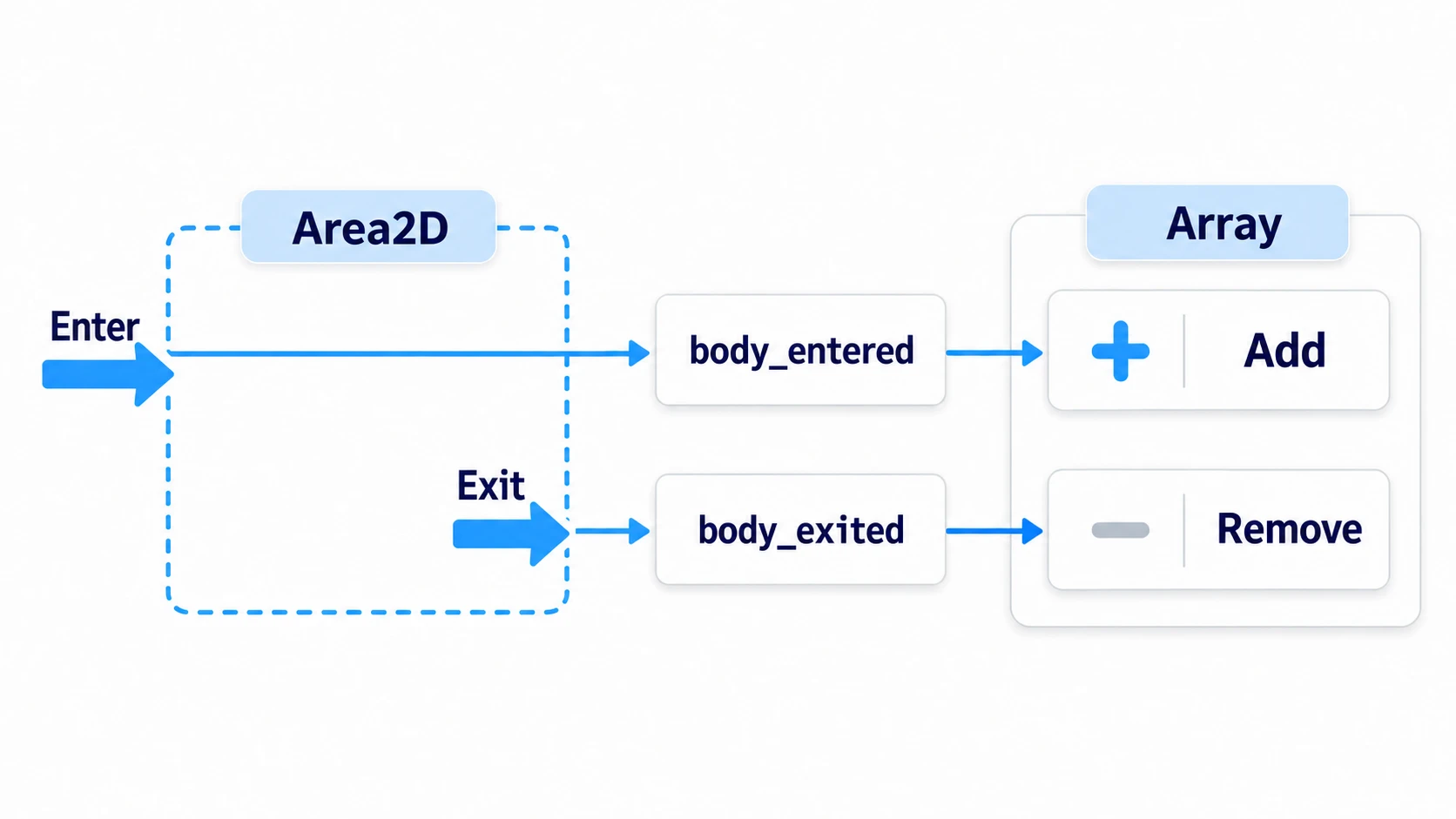

When Area2D detects other objects, it notifies through signals. The four particularly important signals for implementing triggers are:

1. body_entered(body: Node2D) / body_exited(body: Node2D)

These signals fire when physics bodies like CharacterBody2D or RigidBody2D enter or exit the Area2D range. Most commonly used for detecting dynamic objects like players or enemies.

• Use Case: Detecting when a player (CharacterBody2D) enters an enemy's detection range (Area2D).

2. area_entered(area: Area2D) / area_exited(area: Area2D)

These signals fire when another Area2D node enters or exits this Area2D's range. Used when you want to detect interactions between Area2D nodes.

• Use Case: Detecting when a debuff effect area (another Area2D) enters a poison swamp area (Area2D).

Important Properties: monitoring and monitorable

Area2D has two important properties that control detection behavior. Setting these appropriately reduces unnecessary detection processing and improves performance.

• monitoring: Whether this Area2D monitors intrusions by other objects (default: true). Set to true when functioning as a trigger.
• monitorable: Whether this Area2D becomes a target monitored by other Area2D nodes (default: true). Set to true for items, etc., that want to be detected by other areas.

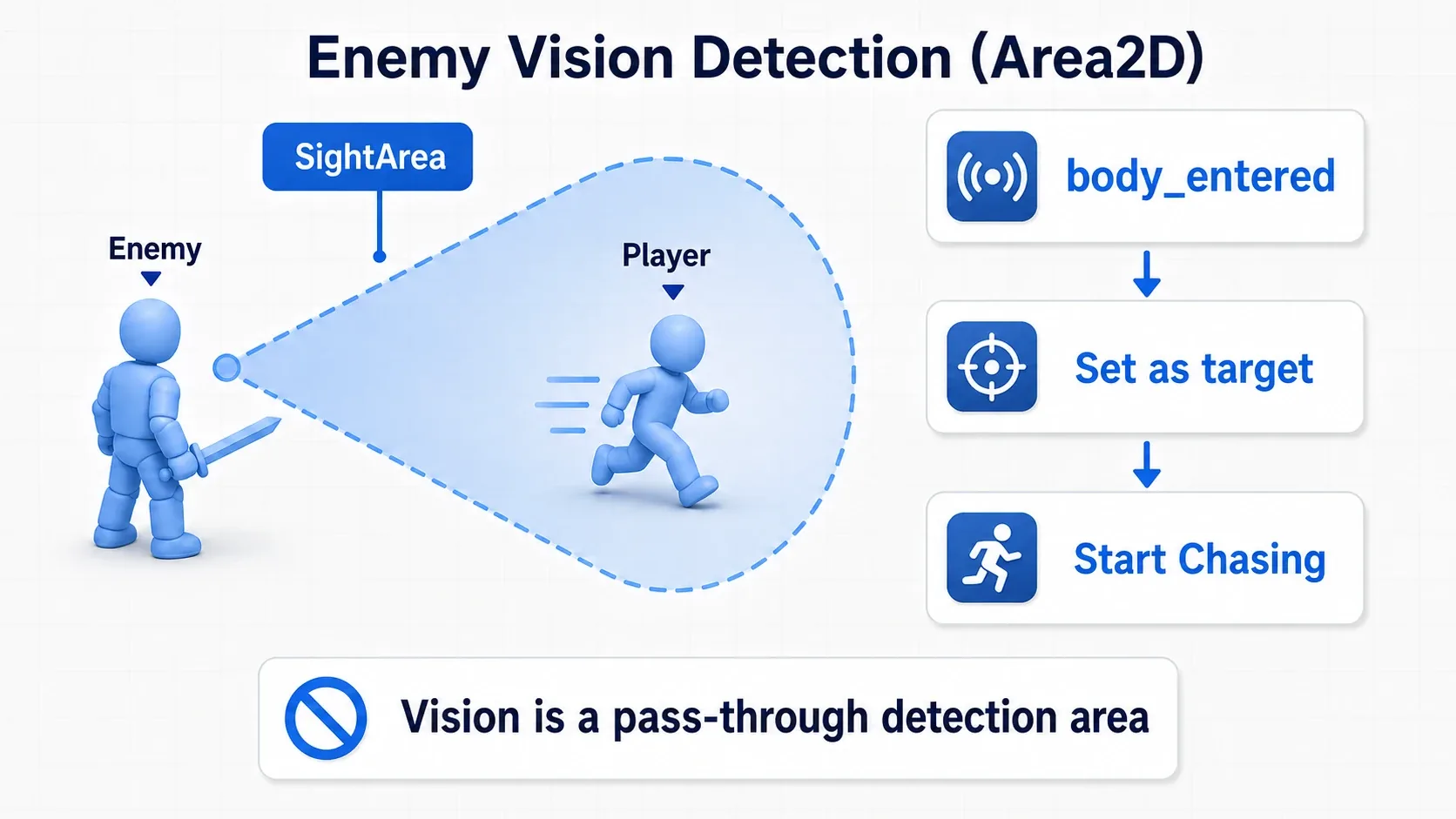

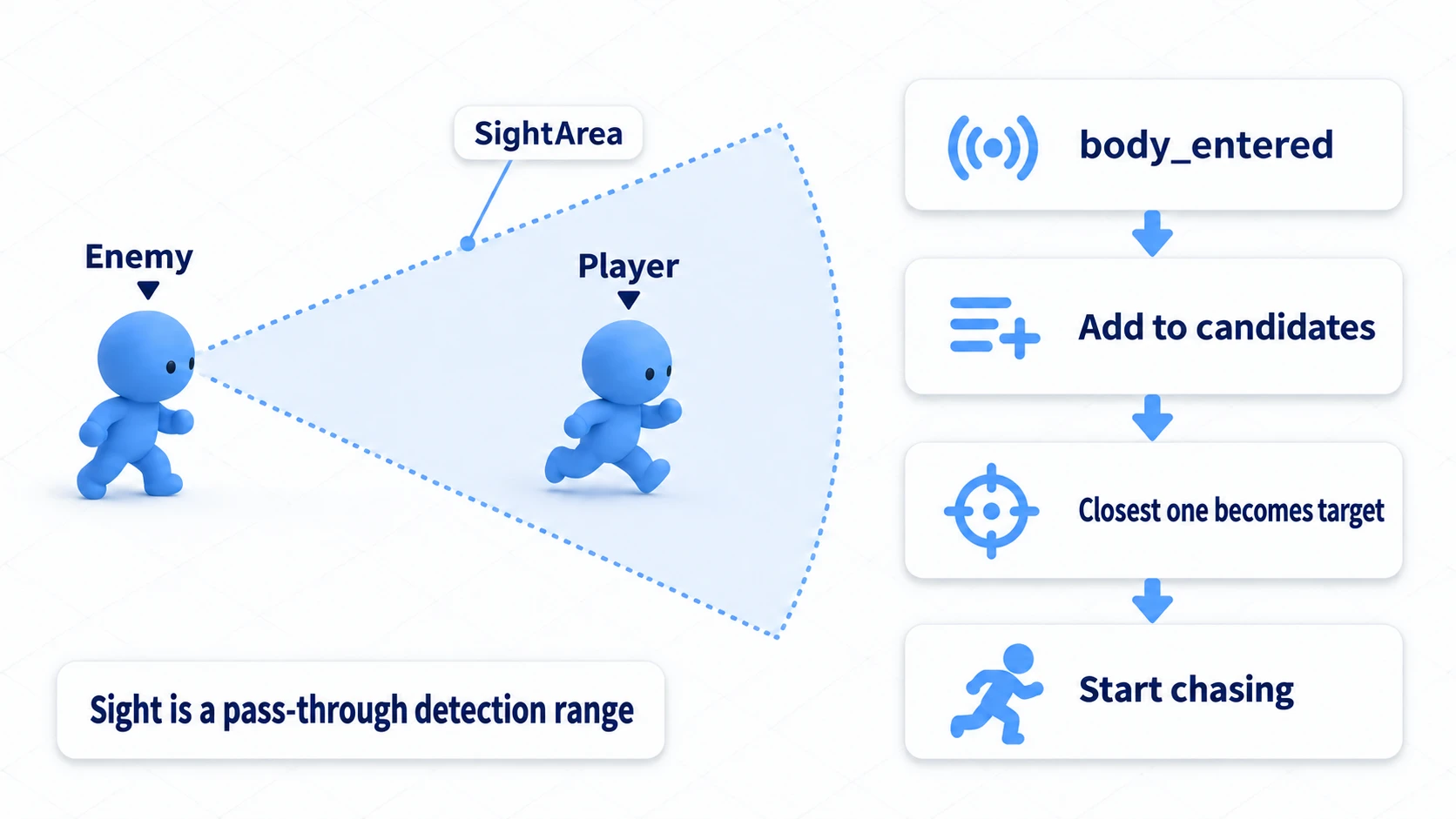

Practical Example 1: Implementing Enemy Detection Range

Here's an explanation of steps to implement an enemy character's "detection range" for finding players using Area2D.

Scene Configuration and Signal Connection

1. Add an Area2D node as a child of the enemy character's root node (e.g., CharacterBody2D) and name it SightRange.
2. Add a circular or rectangular CollisionShape2D as a child of SightRange to define the detection range.
3. Select the SightRange node, connect the body_entered and body_exited signals to the enemy's script from the Inspector's "Node" tab.

GDScript Implementation

Write the connected signal handlers in the enemy's script (e.g., Enemy.gd).

# Enemy.gd

extends CharacterBody2D

# Variable holding reference to player node
var target_player: CharacterBody2D = null

# Function connected to detection range (Area2D) body_entered signal
func _on_sight_range_body_entered(body: Node2D) -> void:
    # Check if entering body is the player
    # Assumes player node has "player" group set
    if body.is_in_group("player"):
        target_player = body as CharacterBody2D
        print("Player detected! Starting pursuit.")
        # Start pursuit logic (e.g., switch state to "CHASE")

# Also connect to detection range (Area2D) body_exited signal
func _on_sight_range_body_exited(body: Node2D) -> void:
    # Check if exiting body is the player
    if body.is_in_group("player"):
        target_player = null
        print("Lost sight of player.")
        # Stop pursuit logic (e.g., switch state to "PATROL")

Key Point: Filtering using the is_in_group() method is essential to verify that detected objects are the intended targets.

Practical Example 2: Implementing Item Collection Trigger

Next, implement a trigger where items disappear and are collected when players touch them. In this case, the item itself functions as an Area2D.

Scene Configuration and Signal Connection

1. Make the item's root node Area2D and name it Coin.
2. Add Sprite2D and CollisionShape2D as children of Coin.
3. Select the Coin node and connect the body_entered signal to the Coin.gd script.

GDScript Implementation

Write collection logic in the item's script (e.g., Coin.gd).

# Coin.gd

extends Area2D

# Function called when player touches the item
func _on_body_entered(body: Node2D) -> void:
    # Check if entering body is the player
    if body.is_in_group("player"):
        # Add processing to update player's score, etc.
        # Example: body.add_score(10)
        print("Collected coin!")

        # Remove item from scene tree to complete collection
        queue_free()

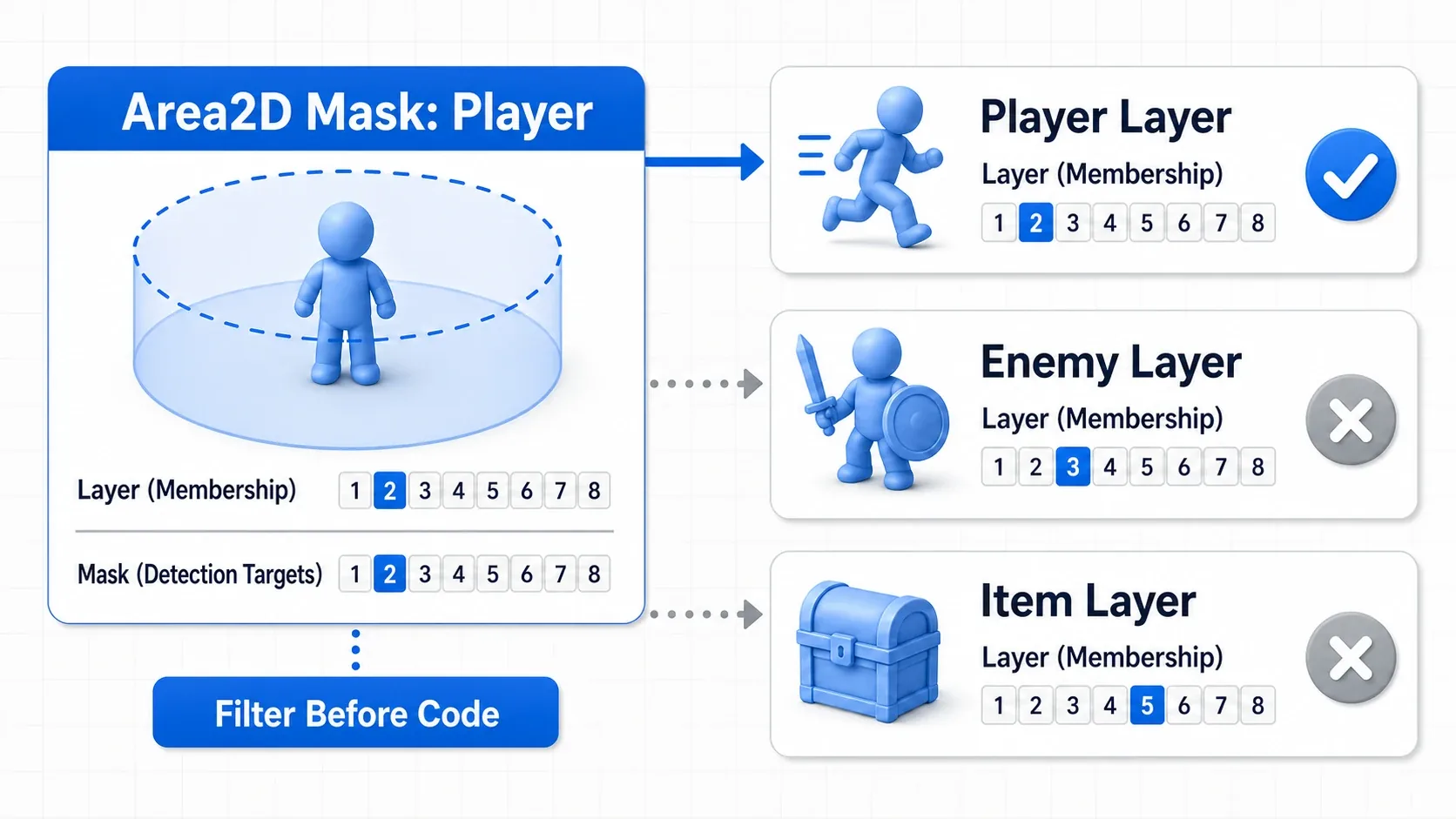

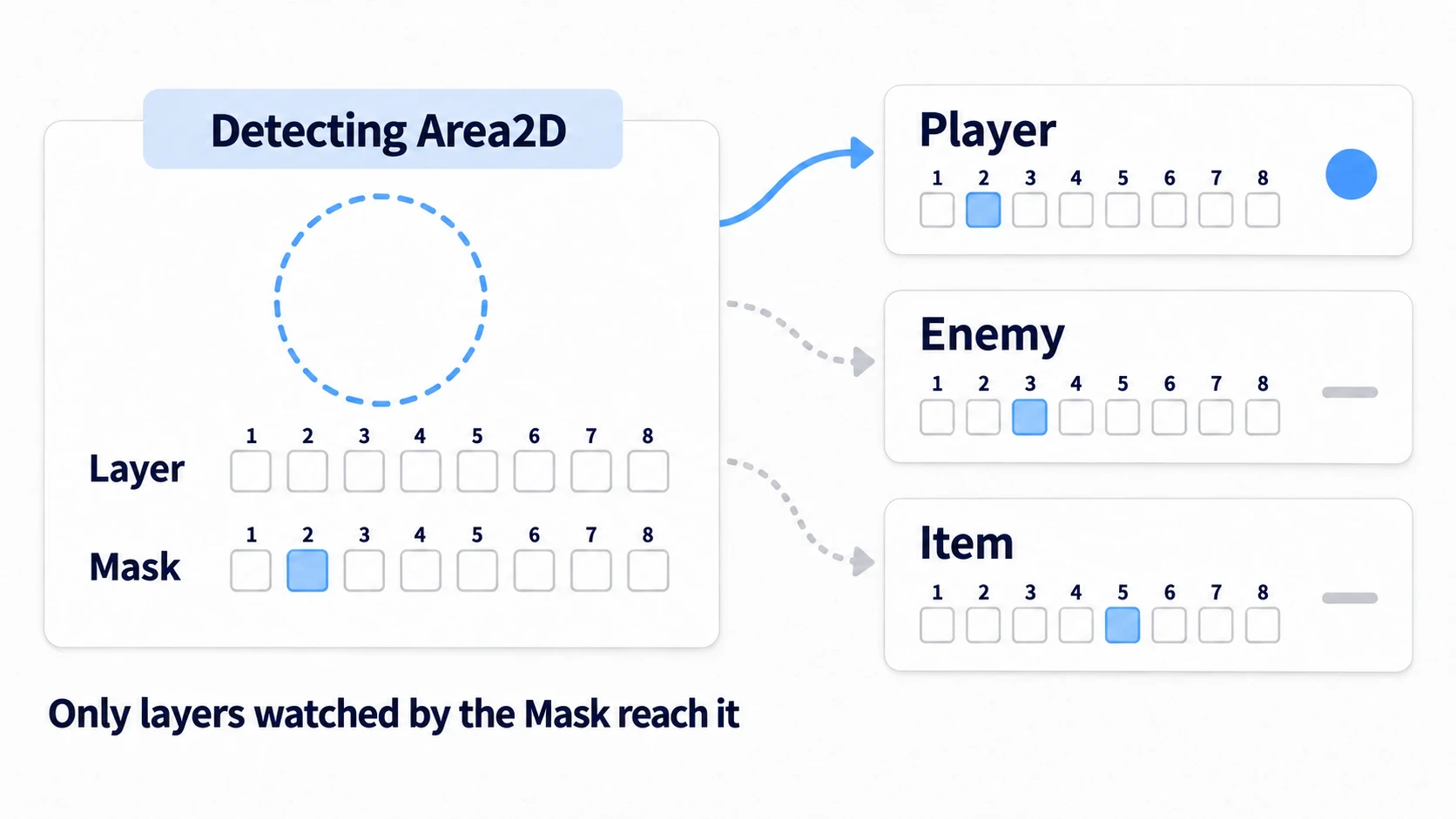

Advanced: Sophisticated Filtering with Collision Layers and Masks

As games become more complex, collision layers and collision masks become essential for preventing unintended object detection.

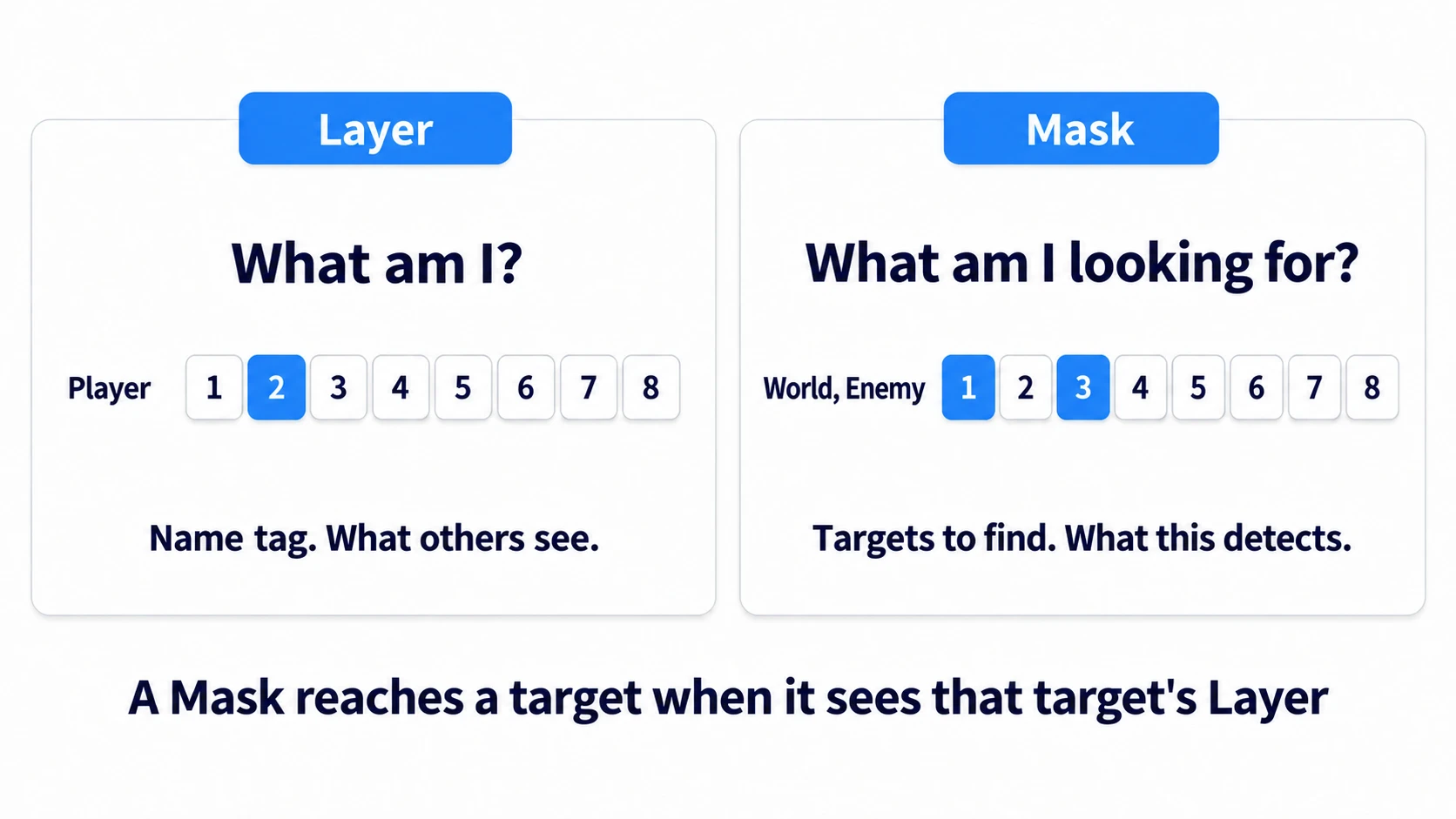

Roles of Layers and Masks

• Layer: Defines "which group this object belongs to."
• Mask: Defines "which groups this object detects."

Detection occurs only when the detector's mask matches the detectee's layer.

Specific Configuration Example

Object	Node Type	Layer Setting	Mask Setting	Notes
Player	CharacterBody2D	Layer 1 (Player)	Layers 2, 3, 4...	Detects enemies, walls, etc.
Enemy Detection Range	Area2D	Layer 2 (Enemy Sight)	Layer 1 (Player)	Detects only player
Item	Area2D	Layer 3 (Item)	Layer 1 (Player)	Detected by player

With this configuration, enemy detection ranges ignore items (Layer 3) and react only to players (Layer 1). This reduces the need for filtering like is_in_group("player") in code and lightens physics engine processing load.

Configuration Steps

1. In Project Settings under "Physics" -> "2D" -> "Layer Names," name each layer like "Player," "Enemy Sight," "Item," etc.
2. In each node's (CharacterBody2D or Area2D) Inspector under the "Collision" section, set appropriate layer and mask checkboxes.

Summary: Adding Depth to Games with Area2D

The Area2D node is the foundation for interaction and trigger implementation in Godot Engine. This mechanism for detecting object presence ranges and triggering events through signals without involving physical collisions greatly expands game design possibilities.

The examples introduced in this article using body_entered signals for enemy detection and item collection are just some applications of Area2D. You can apply it to various purposes like debuff areas, warp zones, and cutscene start triggers. Particularly by combining collision layers and masks, you can achieve efficient and accurate range detection even in large-scale games.

Please actively utilize Area2D in your own projects to build more dynamic and responsive game worlds.
