【Godot】Creating Explosions, Smoke, and Magic Effects with GPUParticles2D

Introduction: Why Are Particle Effects Important?

In game development, particle effects play a role beyond mere decoration. They instantly convey visual information to players—the impact of an explosion, the mystique of magic, the heat of flames, the drift of smoke—and are essential elements for dramatically improving immersion and feedback in games.

Godot Engine offers two main types of particle systems: CPUParticles2D and GPUParticles2D. This article focuses on GPUParticles2D, which maximizes the GPU's (Graphics Processing Unit) parallel processing capabilities to render large numbers of particles with high performance and efficiency. Aimed at beginner to intermediate Godot developers, we'll explain how to use this powerful node to create three major effects frequently needed in game production: "explosion," "smoke," and "magic."

1. Basic Structure and Advantages of GPUParticles2D

Comparison of GPUParticles2D and CPUParticles2D

Feature	GPUParticles2D	CPUParticles2D
Processing Location	GPU (Graphics Card)	CPU (Main Processor)
Performance	Excellent for large particle counts	Suitable for small to medium particle counts
Complex Calculations	Possible with Shader Language	Possible with GDScript
Use Cases	Explosions, fire, rain—large, complex effects	UI effects, small-scale effects

As the name suggests, GPUParticles2D performs particle calculations and rendering on the GPU, so the load on the main game processing (CPU) remains very low even when processing thousands or tens of thousands of particles simultaneously. Since rich effects are expected in modern games, mastering GPUParticles2D is essential when considering performance.

Node Setup

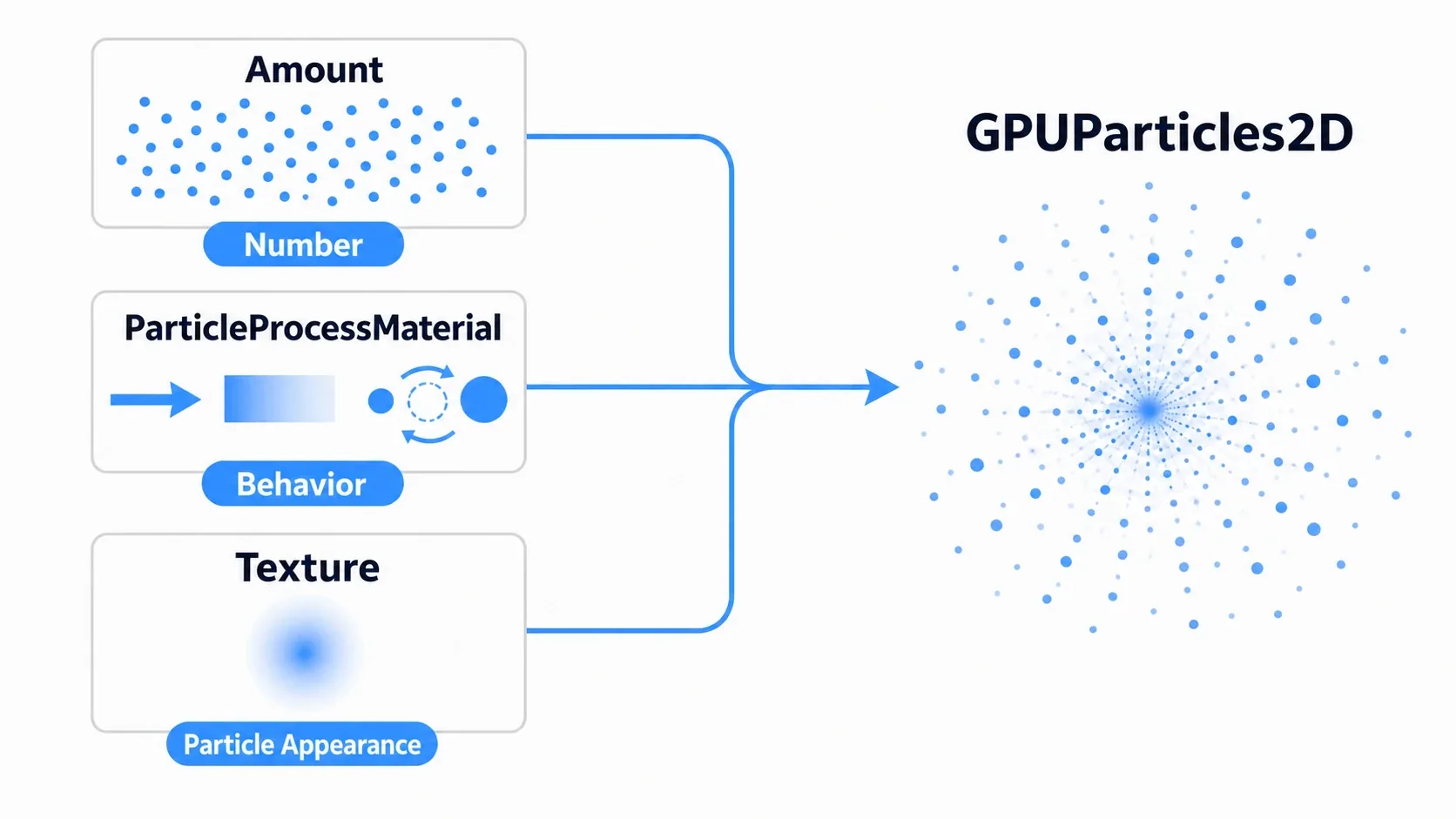

Once you add a GPUParticles2D node to your scene, you need to configure three main properties:

1. Texture: A texture defining the appearance of each particle (typically circular or flame-shaped images).
2. Amount: The total number (maximum) of particles emitted at once.
3. Process Material: A ParticleProcessMaterial resource defining particle behavior such as movement, color, size, and lifespan.

Particularly important is the Process Material. This is the set of settings that control the physical behavior of particles and is the heart that determines the effect's character.

2. Key Settings and Roles of ParticleProcessMaterial

ParticleProcessMaterial has many configuration options, but understanding the main settings that directly affect effect expression is crucial.

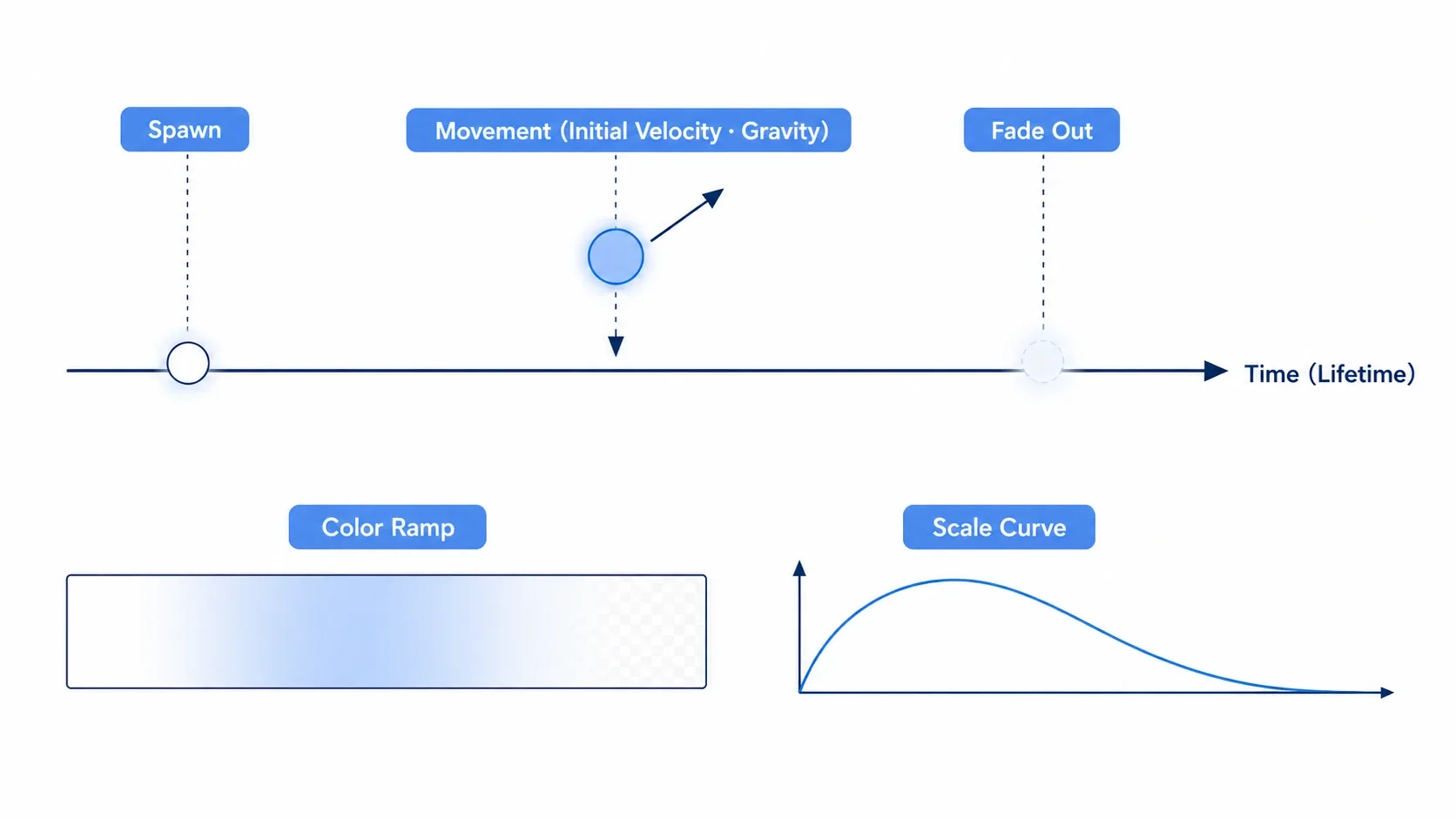

Particle Lifespan and Emission

• Life Time: The time (in seconds) a particle exists on screen. Determines effect duration.
• One Shot: When on, particles are emitted once and stop (for explosions, etc.). When off, particles continue emitting (for smoke, magic auras, etc.).
• Preprocess: Pre-executes the particle simulation so the effect appears fully deployed from scene start.

Particle Movement and Physical Properties

• Direction & Spread: The initial direction particles are emitted and the angle of spread (in degrees) from that direction.
• Initial Velocity: The initial speed of particles.
• Gravity: The gravity vector acting on particles. To make smoke drift upward, set a negative Y-axis value (e.g., (0, -50)).
• Damping: A force that decelerates particle velocity over time. Effective for gradually stopping movement, like smoke or underwater bubbles.

Visual Changes (Color and Scale)

The most important aspects for bringing out realism and dynamism in effects are color and size changes over time.

• Color Ramp: Defines how color changes throughout the particle's lifespan. For explosions, you might set a gradient like "white → orange → red → black."
• Scale Curve: Defines how size changes throughout the particle's lifespan. For explosions, you might set a curve that "rapidly expands then slowly contracts."

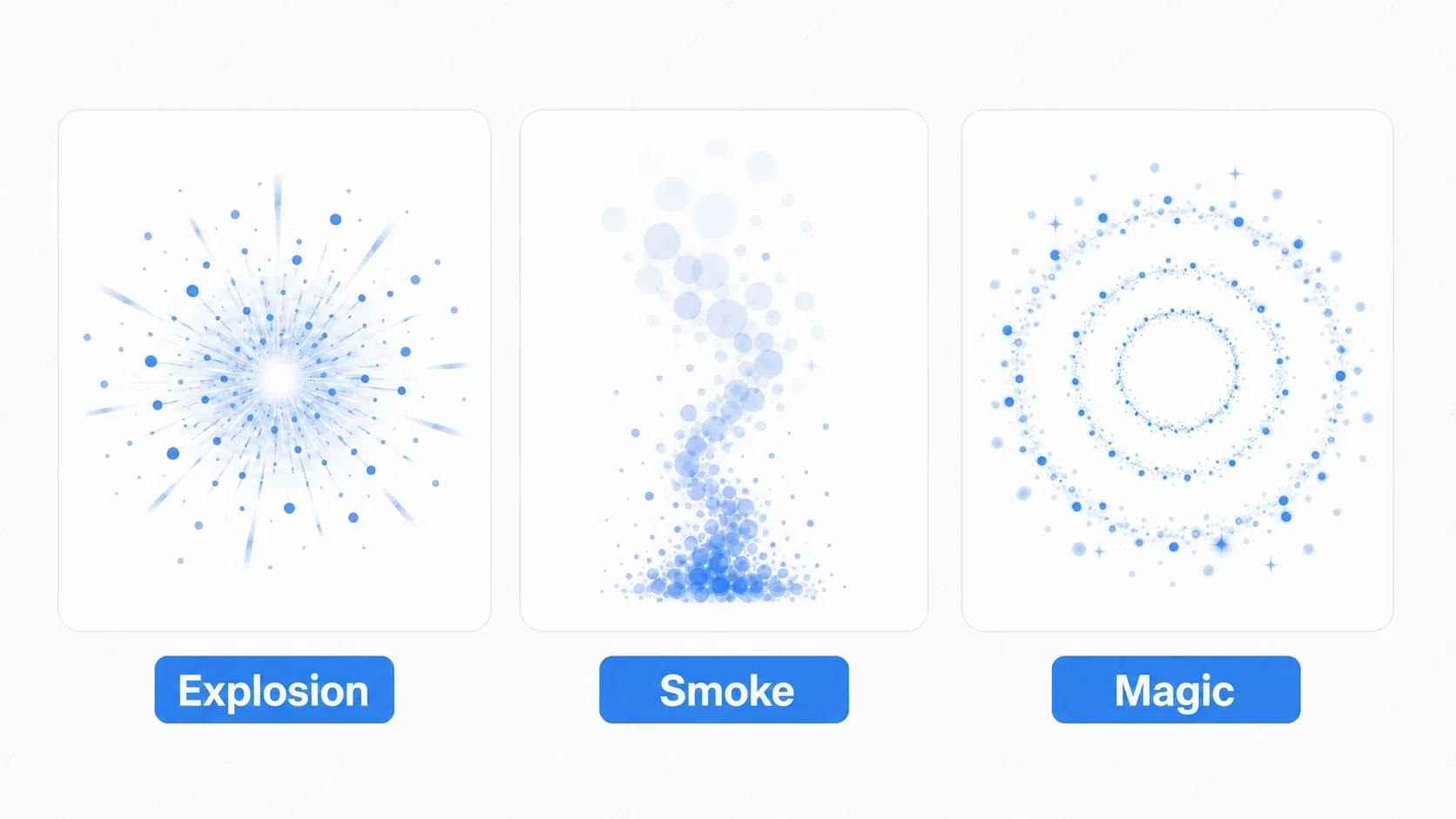

3. Practical Examples: Creating Three Major Effects

Now we'll explain configuration points and GDScript control methods for creating three specific effects—"explosion," "smoke," and "magic"—by applying the basic settings described above.

Practical Example 1: Explosion Effect

Explosions are dynamic effects that spread violently in a short time and disappear quickly.

Configuration Points:

1. Life Time: Set short (e.g., 0.5–1.0 seconds).
2. One Shot: On.

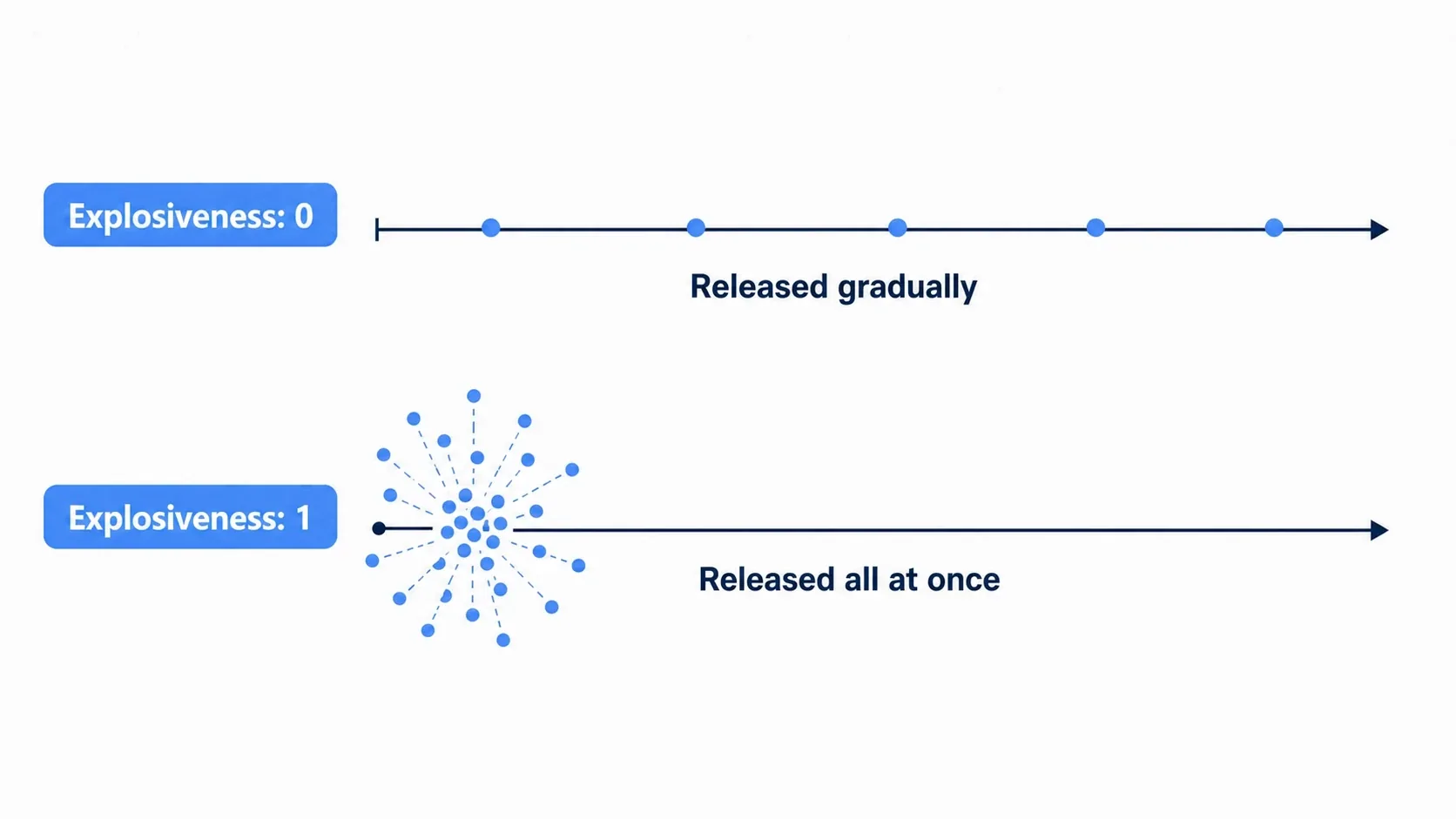

3. Explosiveness: Set to 1.0 to instantly emit all particles set in Amount.
4. Spread: Set to 180 degrees (all directions).
5. Scale Curve: Set a curve that peaks sharply at the beginning of lifespan then rapidly returns to zero.
6. Color Ramp: Set white in the center, orange outward, and dark red or black further out to represent flames and soot.

Triggering with GDScript:

Explosion effects are typically played once at specific events (e.g., enemy destruction, projectile impact).

# ExplosionEffect.gd
extends GPUParticles2D

# Function to play the explosion
func explode():
    # Set emitter position to current node position
    global_position = get_parent().global_position
    # Restart particles, emitting once based on One Shot setting
    restart()

# Delete node after explosion finishes (optional)
func _on_finished():
    queue_free()

Practical Example 2: Smoke Effect

Smoke is a continuous effect that slowly rises and dissipates while expanding.

Configuration Points:

1. Life Time: Set longer (e.g., 2.0–4.0 seconds).
2. One Shot: Off (continuous emission).
3. Gravity: Set negative Y-axis value (e.g., (0, -50)) to make smoke drift upward.
4. Damping: Set slightly to gradually reduce particle velocity.
5. Scale Curve: Set a curve where size gradually increases to express expansion.
6. Color Ramp: Change from white or light gray to transparent black (alpha value to 0) as lifespan ends.

Practical Example 3: Magic Effect

Magic effects are characterized by non-physical movements such as maintaining specific shapes or rotating.

Configuration Points:

1. Emission Shape: Use Ring or Point instead of Sphere or Box, keeping magic circles and auras in mind.
2. Angle & Angular Velocity: Set random initial angles in Angle and set values in Angular Velocity (angular speed) to rotate particles, adding mysterious movement.
3. Velocity: Use Velocity Curve to control particles to follow specific trajectories after emission.
4. Color Ramp: Use vivid colors (blue, purple, green, etc.) and add slight Hue Variation to express fantastical glow.

Following with GDScript:

To make magic effects follow characters or objects, simply place the GPUParticles2D node as a child of the target node.

# MagicAura.gd
extends GPUParticles2D

# Target node to follow
@export var target_node: Node2D

func _process(delta):
    if is_instance_valid(target_node):
        # Move emitter to follow target's position every frame
        global_position = target_node.global_position

Summary: Next Steps in Mastering GPUParticles2D

We've confirmed that by combining GPUParticles2D and ParticleProcessMaterial, you can achieve various effects like explosions, smoke, and magic with high performance.

The key to effect creation lies in adjusting these three elements:

1. Life Time and One Shot: Effect duration and emission pattern.
2. Gravity and Damping: Particle movement and physical behavior.
3. Color Ramp and Scale Curve: Visual time-based changes of particles.

By combining these settings and experimenting with advanced properties like Emission Shape and Velocity Curve, you can build your own, richer game world.
