【Godot】Managing Complex Animations with AnimationTree and State Machines

Introduction: Why AnimationTree and State Machines Are Necessary

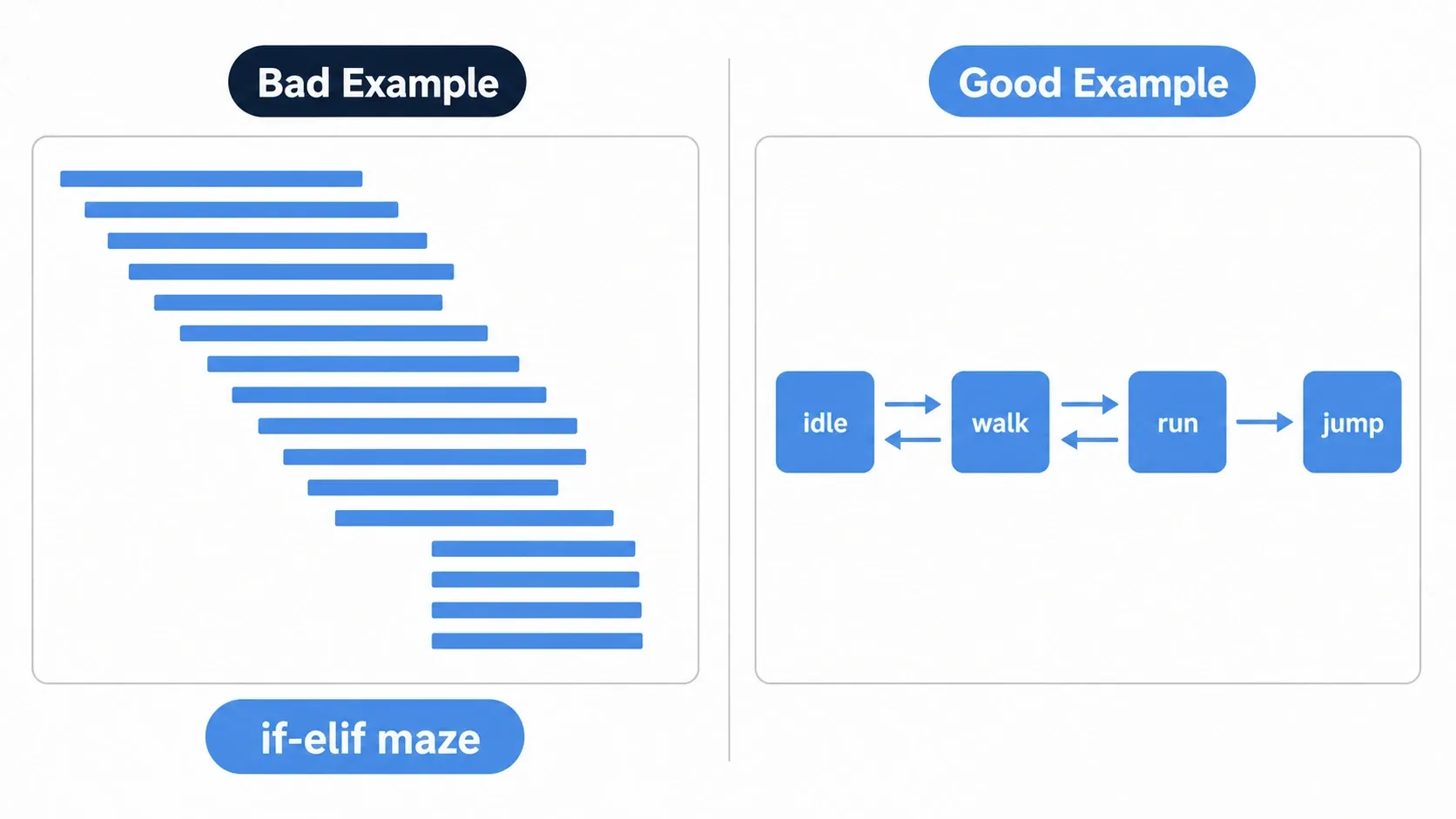

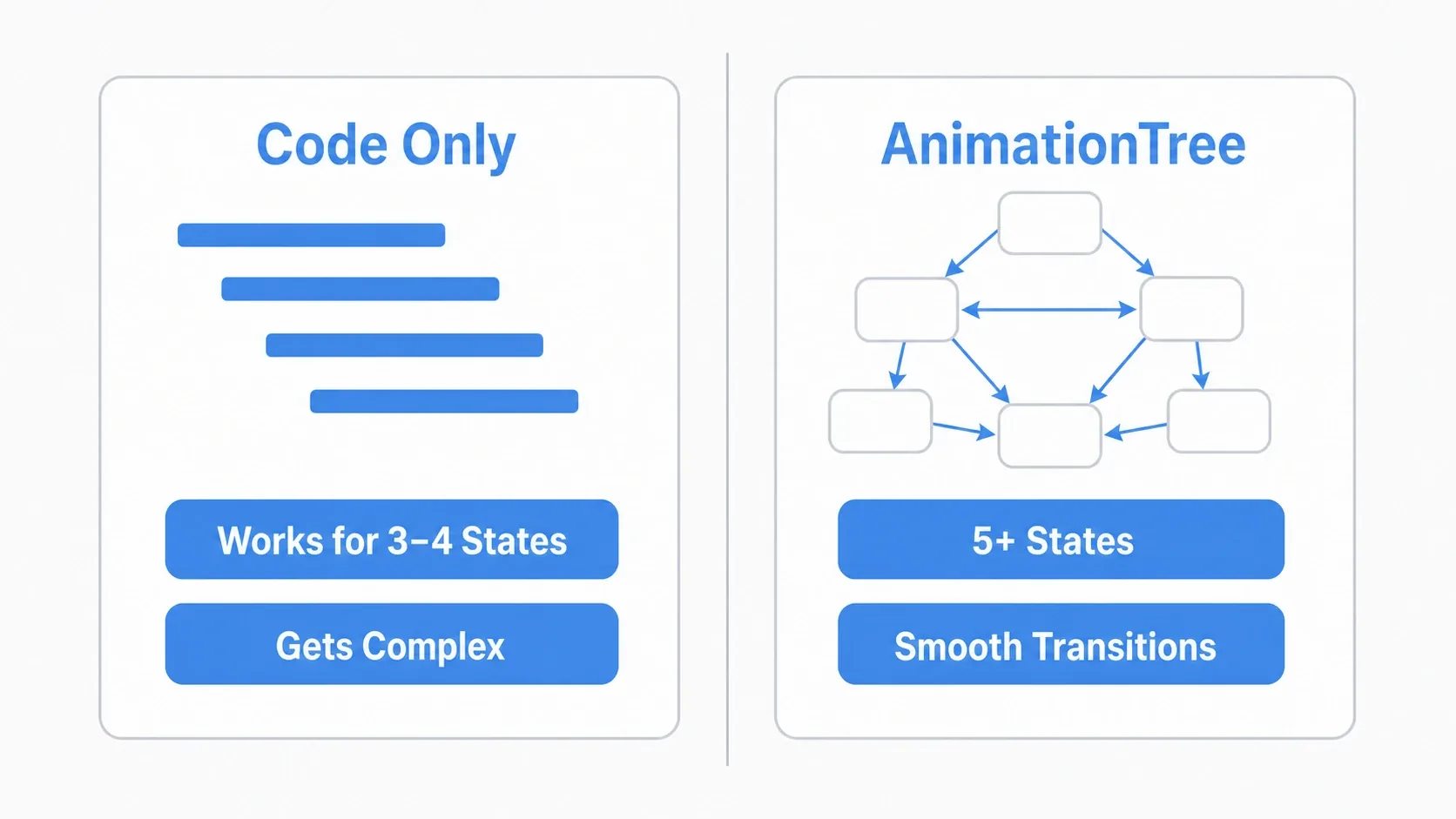

In game development, character animation is an extremely important element for enriching the player's experience. However, when characters have multiple states like "idle," "walk," "run," "jump," and "attack," managing the transitions between these animations in code becomes very complex and cumbersome.

This is where Godot Engine's powerful AnimationTree node and its core State Machine (AnimationNodeStateMachine) come into play. By using these, you can separate animation playback and transition logic as a visual graph, significantly reducing the burden on code while intuitively and flexibly managing complex animation flows.

Understanding Key Concepts

To manage complex animation transitions, let's first understand the three core elements.

1. AnimationTree Node

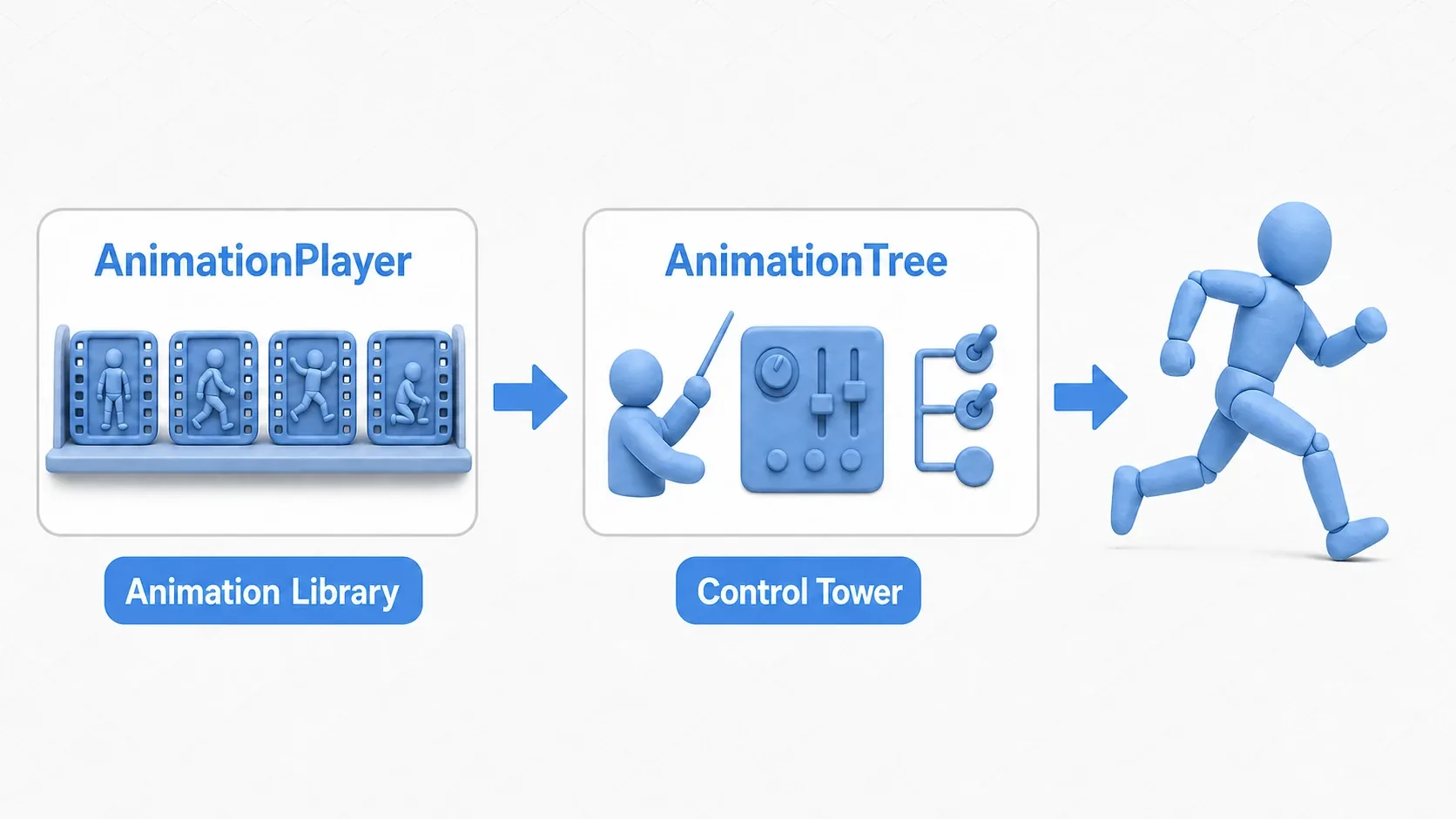

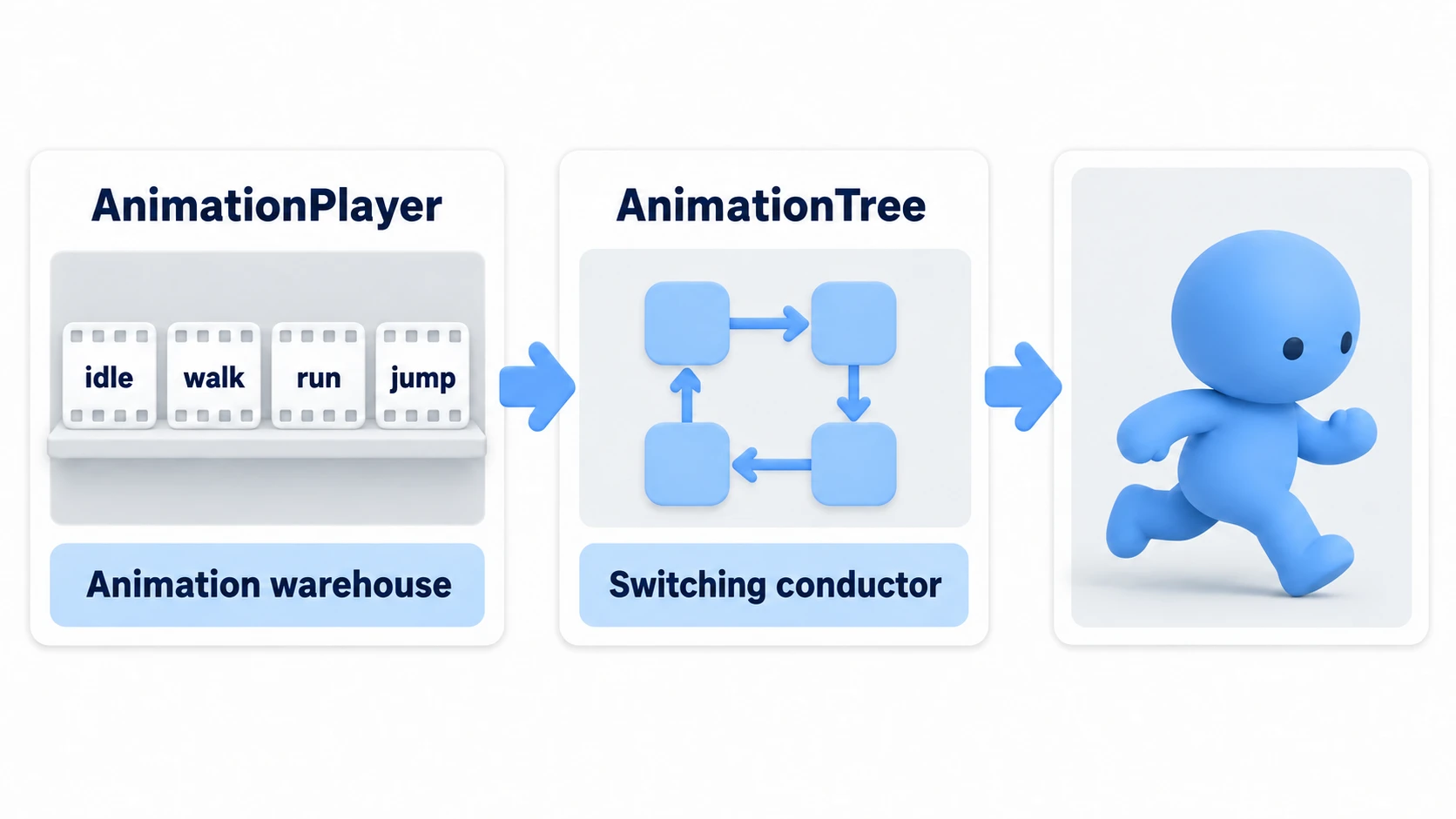

The AnimationTree retrieves animation data stored in AnimationPlayer nodes and blends or controls them with state machines. While AnimationPlayer is the "data bank" for animations, AnimationTree serves as the "execution and control engine" for animations.

2. AnimationNodeStateMachine (State Machine)

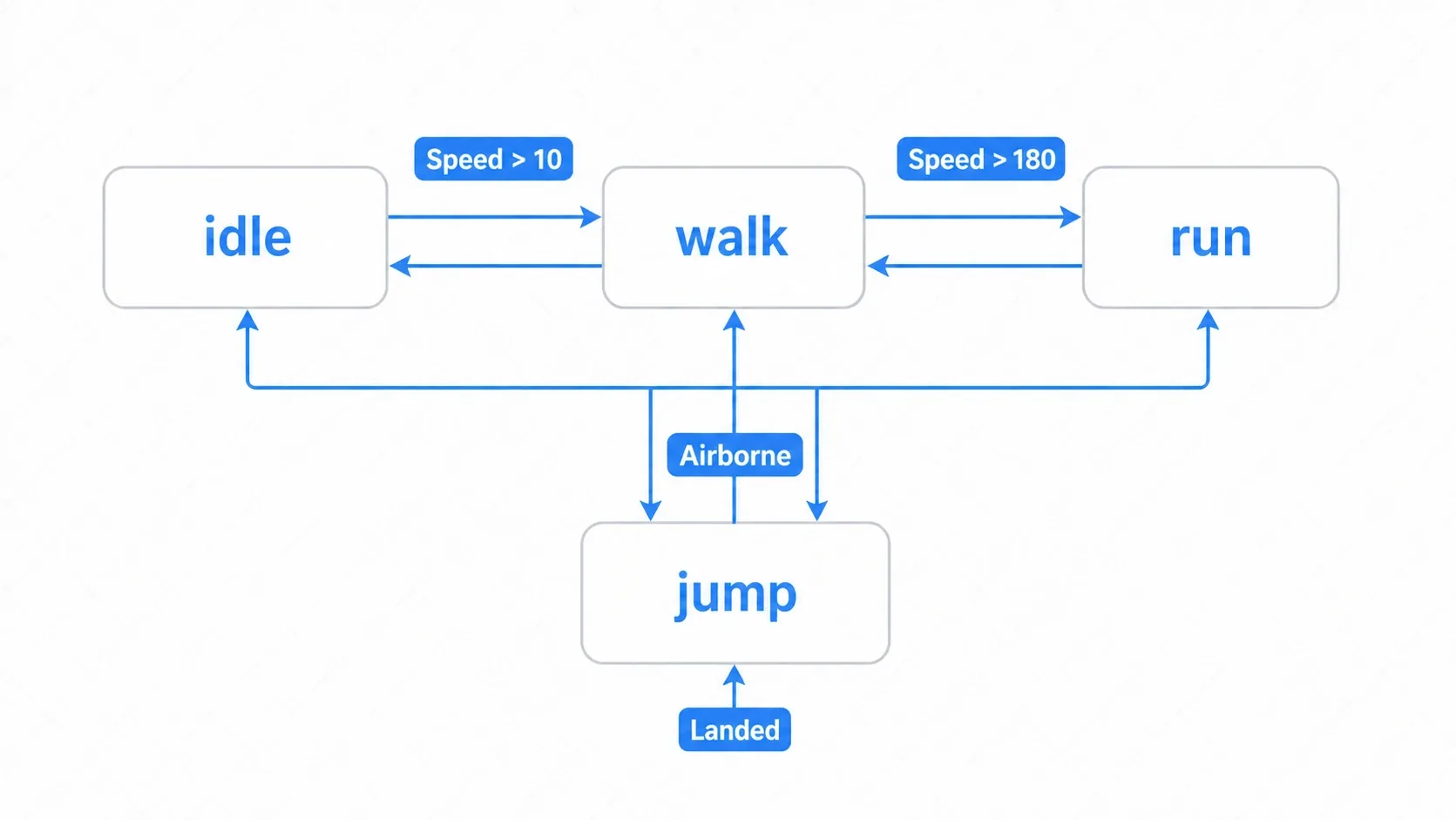

A state machine is a graph structure composed of multiple animation nodes (states) and the transitions connecting them.

• State: A node on the graph representing a specific animation (e.g., "Idle," "Run") or more complex blending processes.
• Transition: An arrow moving between states. Conditions can be set for transitions.

3. AnimationNodeStateMachinePlayback

After visually configuring the state machine, you use the AnimationNodeStateMachinePlayback object to actually control its behavior from GDScript code.

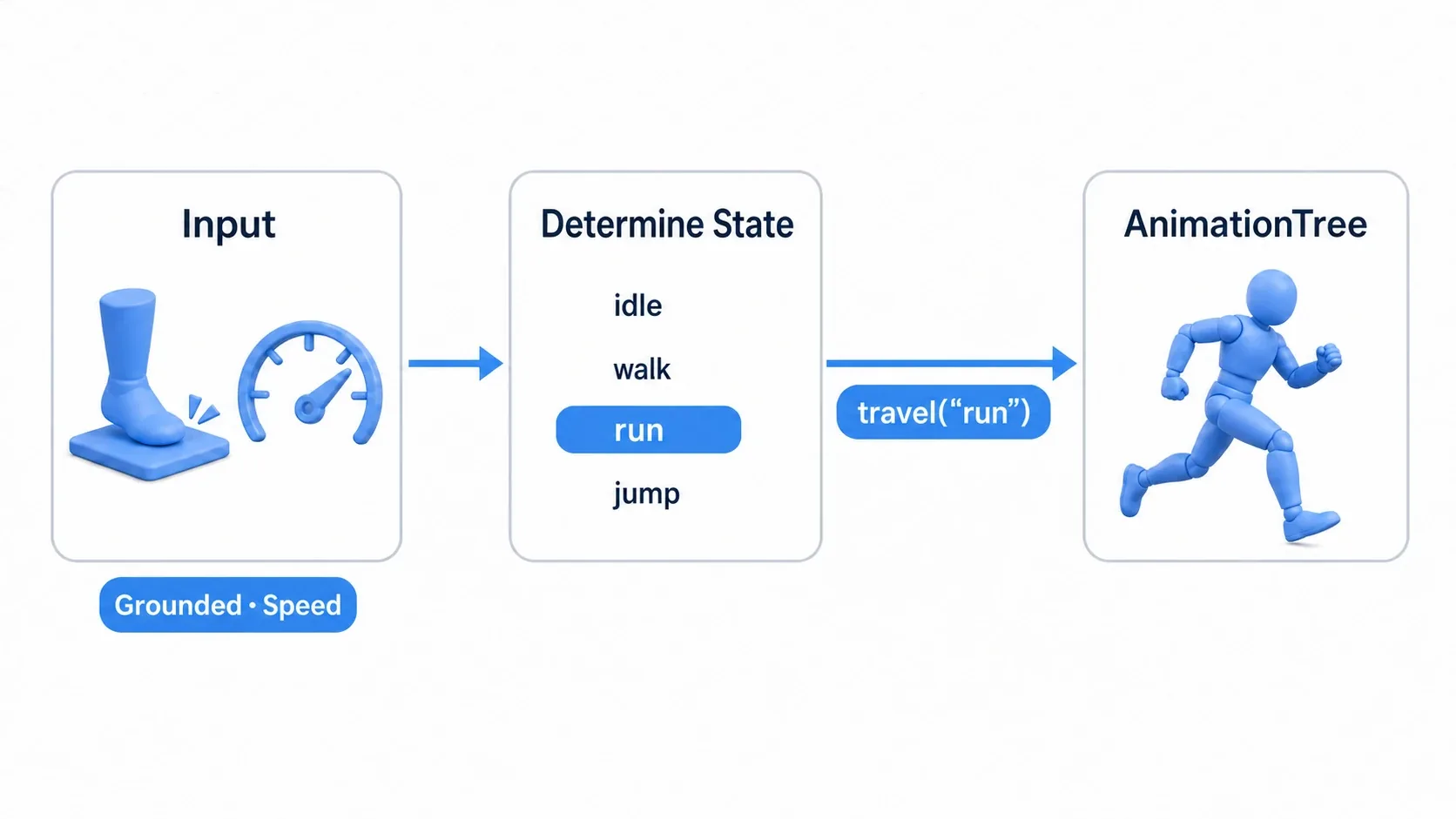

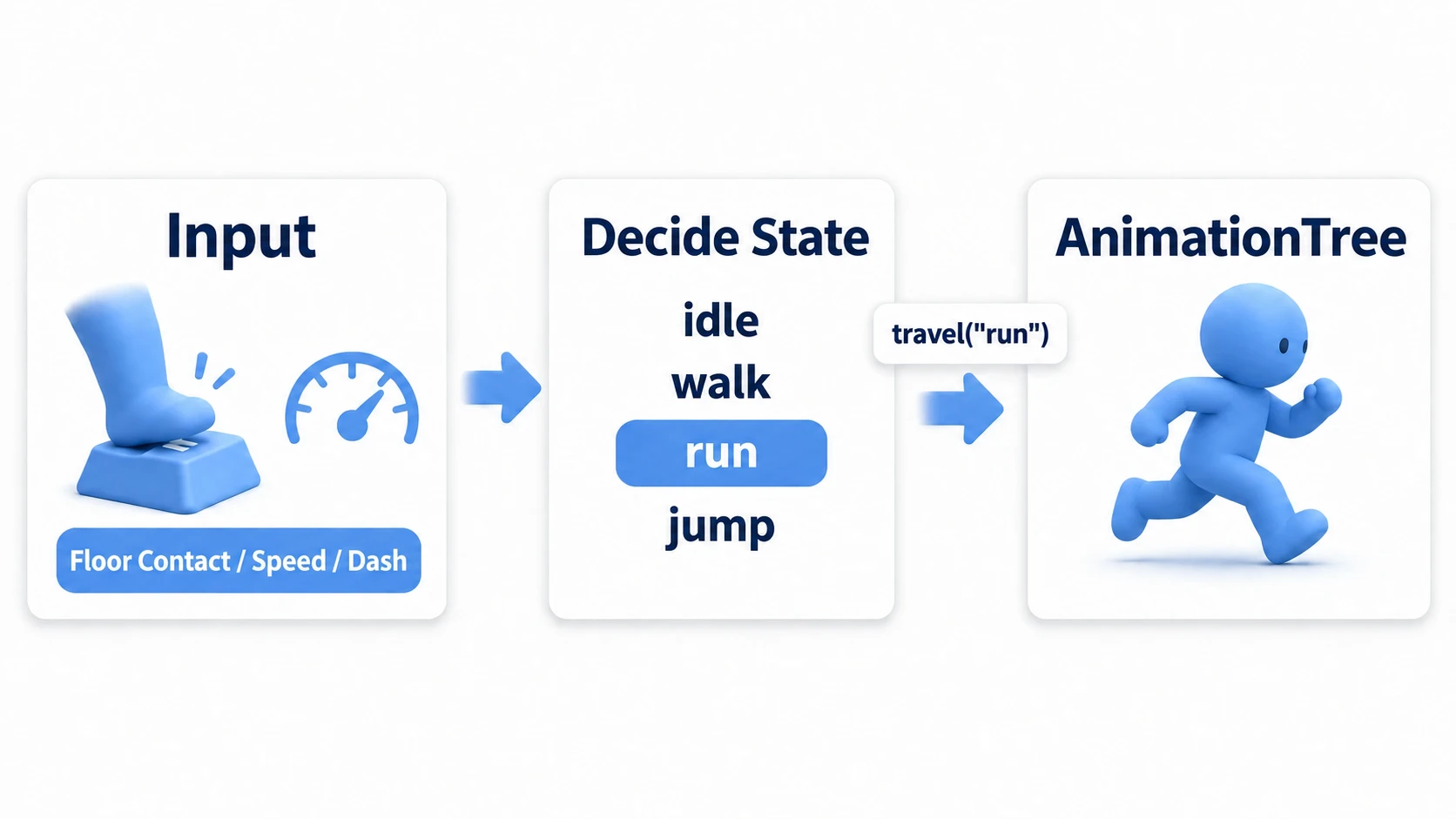

Practical Example: Controlling Character Movement Animations

Here, using a 2D platformer character as an example, we'll introduce the procedure and GDScript code for implementing a state machine with two states: Idle and Run.

State Machine Configuration

1. Create an AnimationTree node and set AnimationNodeStateMachine as the Tree Root.
2. Open the AnimationTree editor, right-click to add two Animation nodes, naming them Idle and Run.
3. Assign the corresponding AnimationPlayer animations to each node.
4. Create bidirectional transitions from Idle to Run and from Run to Idle.

GDScript Control

extends CharacterBody2D

const SPEED = 300.0

@onready var animation_tree: AnimationTree = $AnimationTree
@onready var animation_state: AnimationNodeStateMachinePlayback = animation_tree.get("parameters/playback")

func _ready():
    animation_tree.active = true

func _physics_process(delta):
    var direction = Input.get_axis("ui_left", "ui_right")

    if direction:
        velocity.x = direction * SPEED
    else:
        velocity.x = move_toward(velocity.x, 0, SPEED)

    move_and_slide()

    # Animation control logic
    var is_running = abs(velocity.x) > 10.0

    animation_tree.set("parameters/Idle/Run/condition", is_running)
    animation_tree.set("parameters/Run/Idle/condition", !is_running)

Techniques for Managing Complex Animation Transitions

1. Utilizing Transition Conditions

One of the most powerful features is transition conditions. These define boolean or numeric parameters that must be met for transitions to occur.

Parameter Type	Use Case	Example
Boolean	State ON/OFF	is_jumping, is_attacking
Float	Numeric values like speed or direction	speed, direction_x
OneShot	One-time triggered events	hit, start_attack

2. Nested State Machines

When characters have two major states like "ground" and "air," create two state nodes called "Ground" and "Air" in the main state machine, and set separate AnimationNodeStateMachine (sub-state machines) inside each.

This nested structure allows you to hierarchically organize animation logic, enabling management without breakdown even in very large and complex animation systems.

Summary

Godot Engine's AnimationTree and AnimationNodeStateMachine are essential tools for dramatically simplifying complex character animation management and improving game development efficiency and quality.

Feature	Role	Benefit
AnimationTree	Animation execution engine	Separates logic from AnimationPlayer
State Machine	Visual definition of transition rules	Intuitive management of complex transitions
Transition Conditions	Conditions for transition occurrence	Reduces code burden, improves flexibility

By understanding these concepts and combining them with the practical GDScript control methods introduced in this article, your game characters will achieve more lively and natural movements.
