【Unity】Essential Component Communication: Mastering GetComponent in Unity

Overview

Unity's component-oriented design works by adding multiple components (scripts, Rigidbody, Colliders, etc.) to a single GameObject, with these components working together to create functionality. For example, a PlayerController script on a "Player" object manipulates the Rigidbody attached to the same object to move the character.

GetComponent<T>() is essential for "using functionality from one component in another." Mastering this method is the first step in Unity script communication. This article covers everything from basic GetComponent usage to related methods and performance best practices.

Basic GetComponent Usage

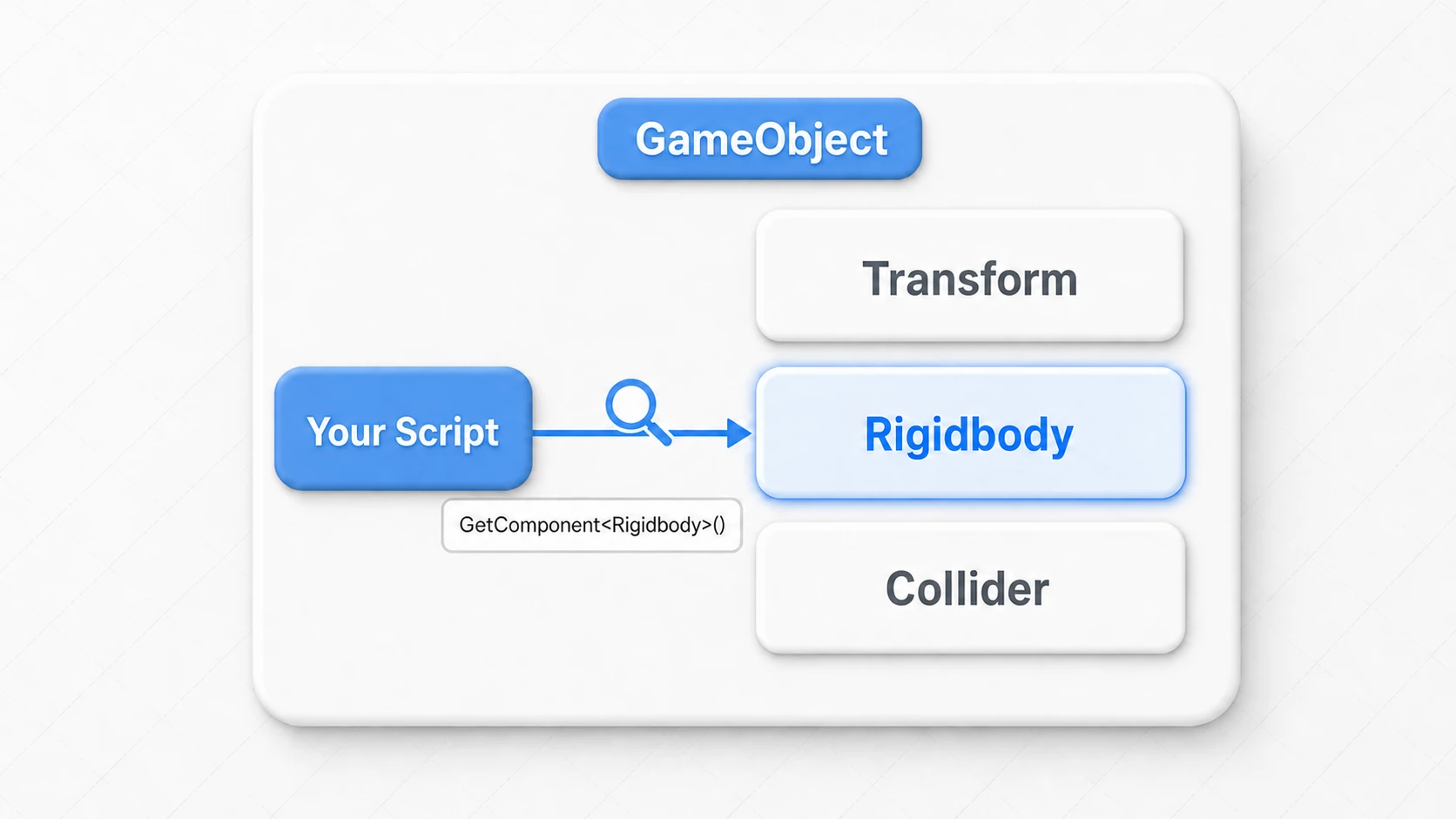

GetComponent<T>() searches for a component of the specified type T on the same GameObject as the script calling it, and returns a reference (instance) to that component. Specify the class name of the component you want to retrieve for T.

Getting Built-in Components

For example, to manipulate a Rigidbody component from a script for physics:

using UnityEngine;

// Require Rigidbody to be added to any GameObject this script is attached to
[RequireComponent(typeof(Rigidbody))]
public class PlayerPhysics : MonoBehaviour
{
    private Rigidbody rb;

    void Start()
    {
        // Get the Rigidbody component attached to this same GameObject
        rb = GetComponent<Rigidbody>();

        // Modify the retrieved Rigidbody's properties
        if (rb != null) // Safety check for successful retrieval
        {
            rb.useGravity = true;
            rb.mass = 1.5f;
        }
        else
        {
            Debug.LogError("Rigidbody component not found!");
        }
    }

    void FixedUpdate()
    {
        // Apply force using the retrieved Rigidbody
        rb.AddForce(Vector3.up * 10f);
    }
}

Adding the [RequireComponent(typeof(Rigidbody))] attribute before the class automatically adds a Rigidbody component when this script is attached—useful for preventing missing component errors.

Getting Custom Script Components

Similarly, you can retrieve other custom script components. This enables calling functions and referencing variables between scripts.

// PlayerHealth.cs
using UnityEngine;
public class PlayerHealth : MonoBehaviour
{
    public int currentHealth = 100;

    public void TakeDamage(int damage)
    {
        currentHealth -= damage;
        Debug.Log("Took damage! Remaining HP: " + currentHealth);
    }
}

// Enemy.cs
using UnityEngine;
public class Enemy : MonoBehaviour
{
    void OnCollisionEnter(Collision collision)
    {
        // If the colliding object has the "Player" tag
        if (collision.gameObject.CompareTag("Player"))
        {
            // Get the PlayerHealth component from the other GameObject
            PlayerHealth playerHealth = collision.gameObject.GetComponent<PlayerHealth>();

            // Call the retrieved component's public method
            if (playerHealth != null)
            {
                playerHealth.TakeDamage(10);
            }
        }
    }
}

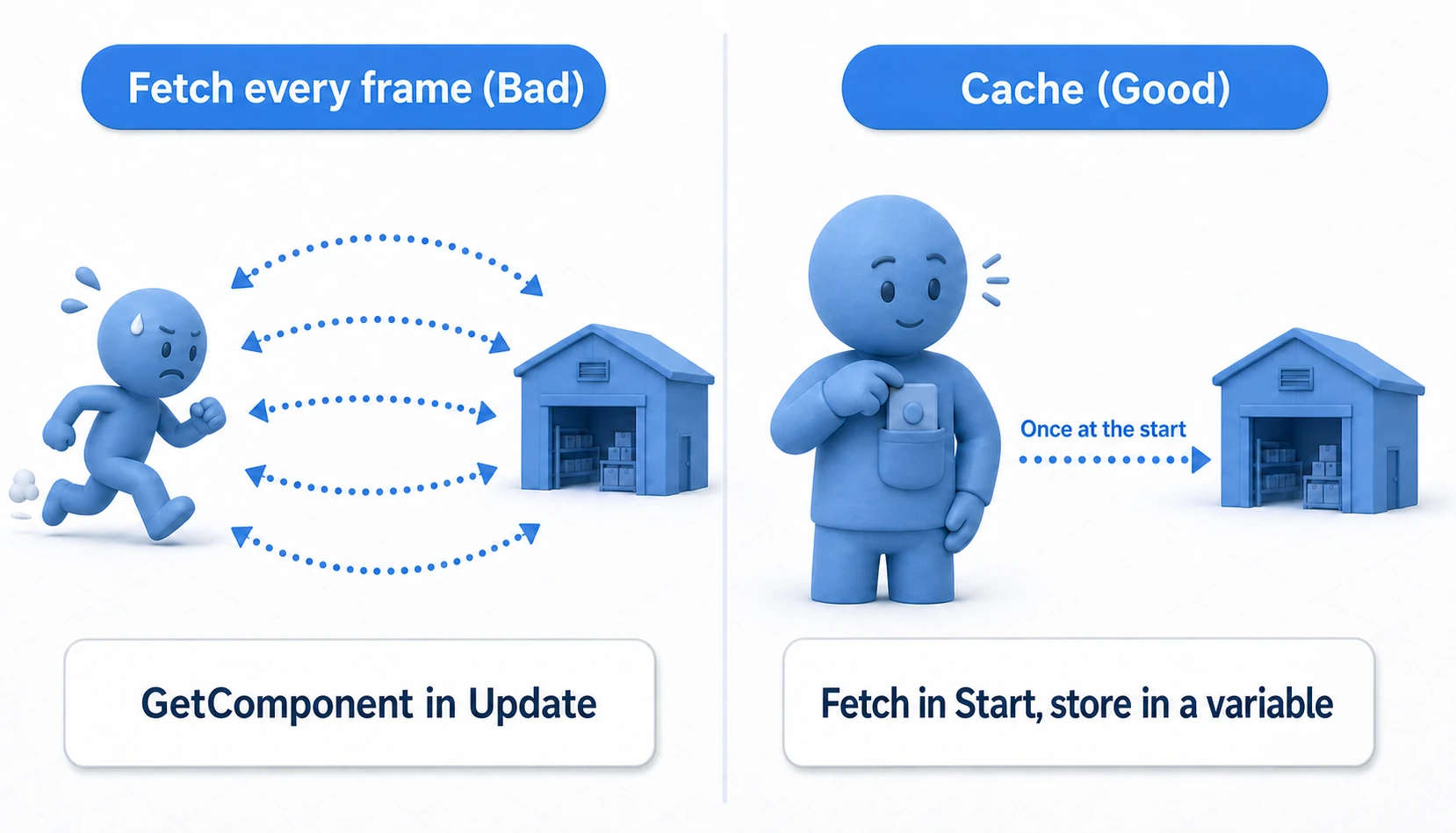

Performance Matters: Cache It!

While GetComponent is convenient, it's a costly operation. Unity searches through all components attached to the GameObject to find the specified one.

Calling this in Update() or other per-frame functions runs unnecessary searches every frame, degrading performance.

Best practice: Call GetComponent once in Awake() or Start() and store (cache) the result in a member variable.

// Bad: Calling GetComponent every frame in Update
void Update()
{
    GetComponent<Rigidbody>().AddForce(Vector3.up);
}

// Good: Cache in Start, use the variable in Update
private Rigidbody rb;
void Start()
{
    rb = GetComponent<Rigidbody>();
}
void Update()
{
    rb.AddForce(Vector3.up);
}

This "caching" technique is one of the most fundamental and important optimizations in Unity programming.

Related Methods

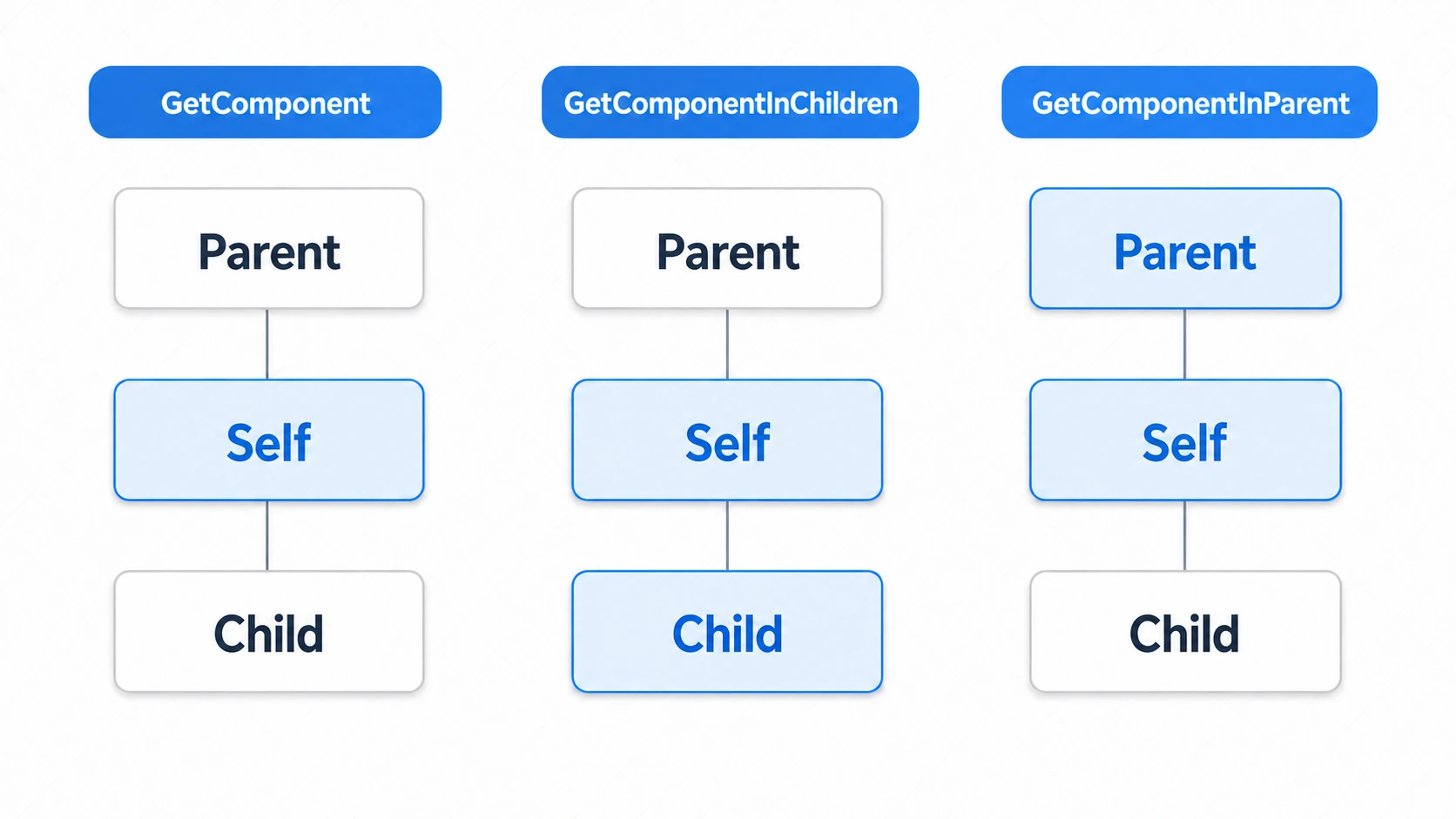

GetComponent has variations with different search scopes:

GetComponentInChildren<T>(): Searches this object and its children, returning the first T component found.
GetComponentInParent<T>(): Searches this object and its parents upward, returning the first T component found.
GetComponents<T>(): Returns an array of all T components on the same GameObject.

These methods are also costly—avoid overuse unless necessary.

C# 7.0+ Feature: `TryGetComponent`

Unity 2019.2+ introduces TryGetComponent<T>(out T component). Similar to GetComponent, but returns a bool indicating whether the component was found, with the reference stored in the out parameter if found. Enables more concise null checking.

// Using GetComponent
Rigidbody rb = GetComponent<Rigidbody>();
if (rb != null)
{
    // Process
}

// Using TryGetComponent
if (TryGetComponent<Rigidbody>(out Rigidbody rb))
{
    // Process
}

Summary

GetComponent is the key method for connecting components and creating complex interactions in Unity.

GetComponent<T>(): The fundamental way to get other components on the same GameObject.
Caching is critical: Retrieve in Start() or Awake(), store in a variable, and reuse.
GetComponentInChildren, GetComponentInParent: Can retrieve components from parent/child objects, but be mindful of cost.
TryGetComponent: A newer option for cleaner null checking.

Master this method and your Unity programming skills will dramatically improve.
