【Unity】Getting Started with Unity Editor Extensions: Building Tools to Boost Development Efficiency

Overview

Tested with: Unity 2022.3 LTS / Unity 6

"Repetitive tasks are taking too much time..." "I want to standardize workflows across the team..." "I want to build user-friendly tools for designers and planners..."

These are common challenges in Unity development. Editor extensions are techniques for extending Unity Editor functionality to improve development efficiency. You can create custom windows, customize the Inspector, add menu items, and build tools tailored to your project's specific workflows.

Editor Folder Placement

Editor extension scripts must always be placed inside an Editor folder.

Why is the Editor Folder Required?

• Separates code used only in Unity Editor
• Automatically excluded from builds
• Enables use of editor-only APIs
• Controls compilation order

Where to Place It

• Can be placed anywhere in the project
• Commonly placed at Assets/Editor
• Multiple Editor folders are allowed
• Resources used by editor extensions (images, fonts, etc.) go in the Editor Default Resources folder

MenuItem: Adding Menu Items

MenuItem is the simplest form of editor extension, adding items to the Unity Editor menu bar.

Basic Usage

using UnityEngine;
using UnityEditor;

public class MenuItemExample
{
    [MenuItem("Tools/Do Something")]
    static void DoSomething()
    {
        Debug.Log("Something!");
    }
}

This adds a Tools > Do Something menu item.

Setting Shortcut Keys

[MenuItem("Tools/Do Something %g")] // Ctrl+G (Windows) / Cmd+G (Mac)
static void DoSomething()
{
    Debug.Log("Something!");
}

Shortcut key symbols:

• %: Ctrl (Windows) / Cmd (Mac)
• #: Shift
• &: Alt
• _: Key only (e.g., _g for G)

Enabling/Disabling Menu Items

[MenuItem("Tools/Do Something")]
static void DoSomething()
{
    Debug.Log("Something!");
}

[MenuItem("Tools/Do Something", true)]
static bool ValidateDoSomething()
{
    // Only enabled when something is selected
    return Selection.activeGameObject != null;
}

Adding Context Menu Items

[MenuItem("CONTEXT/Transform/Reset Position")]
static void ResetPosition(MenuCommand command)
{
    Transform transform = (Transform)command.context;
    Undo.RecordObject(transform, "Reset Position");
    transform.position = Vector3.zero;
}

Important: Always use Undo.RecordObject() to support undo operations when modifying objects. When using Undo.RecordObject(), EditorUtility.SetDirty() is not needed (Undo itself tracks the changes).

EditorWindow: Creating Custom Windows

EditorWindow is a powerful feature that lets you create custom windows.

Basic Usage

using UnityEngine;
using UnityEditor;

public class MyEditorWindow : EditorWindow
{
    [MenuItem("Window/My Editor Window")]
    static void Open()
    {
        GetWindow<MyEditorWindow>("My Editor Window");
    }

    void OnGUI()
    {
        GUILayout.Label("Hello, Editor Window!");
    }
}

Using UI Toolkit (Unity 2021+)

Starting with Unity 2022, UI Toolkit is the recommended UI system for editor extensions.

using UnityEngine;
using UnityEditor;
using UnityEngine.UIElements;

public class MyEditorWindow : EditorWindow
{
    [MenuItem("Window/My Editor Window")]
    static void Open()
    {
        GetWindow<MyEditorWindow>("My Editor Window");
    }

    void CreateGUI()
    {
        // Label
        var label = new Label("Hello, UI Toolkit!");
        rootVisualElement.Add(label);

        // Text field
        var textField = new TextField("Name");
        textField.RegisterValueChangedCallback(evt => Debug.Log(evt.newValue));
        rootVisualElement.Add(textField);

        // Button
        var button = new Button(() => Debug.Log("Clicked!")) { text = "Click Me" };
        rootVisualElement.Add(button);
    }
}

Benefits of UI Toolkit: Supports style separation with stylesheets (USS) and data binding. Consider using UI Toolkit for new editor extensions.

Saving Data

public class MyEditorWindow : EditorWindow
{
    string text = "";

    void OnGUI()
    {
        text = EditorGUILayout.TextField("Text", text);
    }

    void OnEnable()
    {
        text = EditorPrefs.GetString("MyEditorWindow_Text", "");
    }

    void OnDisable()
    {
        EditorPrefs.SetString("MyEditorWindow_Text", text);
    }
}

CustomEditor: Customizing the Inspector

CustomEditor lets you customize the Inspector display for specific components.

Basic Usage (Recommended: SerializedObject)

// Component
using UnityEngine;

public class MyComponent : MonoBehaviour
{
    public int value;
    public string text;
}

// Custom Editor (recommended pattern)
using UnityEditor;

[CustomEditor(typeof(MyComponent))]
public class MyComponentEditor : Editor
{
    SerializedProperty valueProp;
    SerializedProperty textProp;

    void OnEnable()
    {
        valueProp = serializedObject.FindProperty("value");
        textProp = serializedObject.FindProperty("text");
    }

    public override void OnInspectorGUI()
    {
        serializedObject.Update();

        EditorGUILayout.PropertyField(valueProp);
        EditorGUILayout.PropertyField(textProp);

        if (GUILayout.Button("Reset"))
        {
            valueProp.intValue = 0;
            textProp.stringValue = "";
        }

        serializedObject.ApplyModifiedProperties();
    }
}

Important: Using SerializedObject automatically enables Undo/Redo support, multi-object editing, and Prefab override detection. There is no need to call EditorUtility.SetDirty().

Warning: Directly Accessing target (Not Recommended)

Warning: This approach does not support Undo/Redo or multi-object editing. The SerializedObject approach above is recommended. This is documented only for understanding legacy code.

// Not recommended - no Undo/Redo support
[CustomEditor(typeof(MyComponent))]
public class MyComponentEditor : Editor
{
    public override void OnInspectorGUI()
    {
        MyComponent myComponent = (MyComponent)target;

        // Direct editing does not support Undo or multi-editing
        myComponent.value = EditorGUILayout.IntField("Value", myComponent.value);
        myComponent.text = EditorGUILayout.TextField("Text", myComponent.text);

        if (GUI.changed)
        {
            EditorUtility.SetDirty(target);  // Notify Unity of changes (not recommended pattern)
        }
    }
}

About SetDirty: When using SerializedObject.ApplyModifiedProperties(), EditorUtility.SetDirty() is not needed. SetDirty() is only necessary when directly modifying target, but that pattern itself is not recommended.

Benefits of SerializedObject

• Undo/Redo: Automatic support
• Multi-editing: Works when multiple objects are selected simultaneously
• Prefab: Bold override display is automatic
• No SetDirty needed: ApplyModifiedProperties() automatically notifies of changes

EditorGUILayout Reference

A reference table of commonly used EditorGUILayout fields.

Method	Purpose	Return Type
IntField	Integer input	int
FloatField	Float input	float
TextField	String input	string
Toggle	Checkbox	bool
Popup	Dropdown selection	int (index)
EnumPopup	Enum selection	Enum
ObjectField	Object reference	Object
Vector3Field	Vector3 input	Vector3
ColorField	Color picker	Color
Slider	Slider	float
IntSlider	Integer slider	int
Foldout	Foldout section	bool
BeginHorizontal/EndHorizontal	Horizontal layout	-
BeginVertical/EndVertical	Vertical layout	-
Space	Add spacing	-

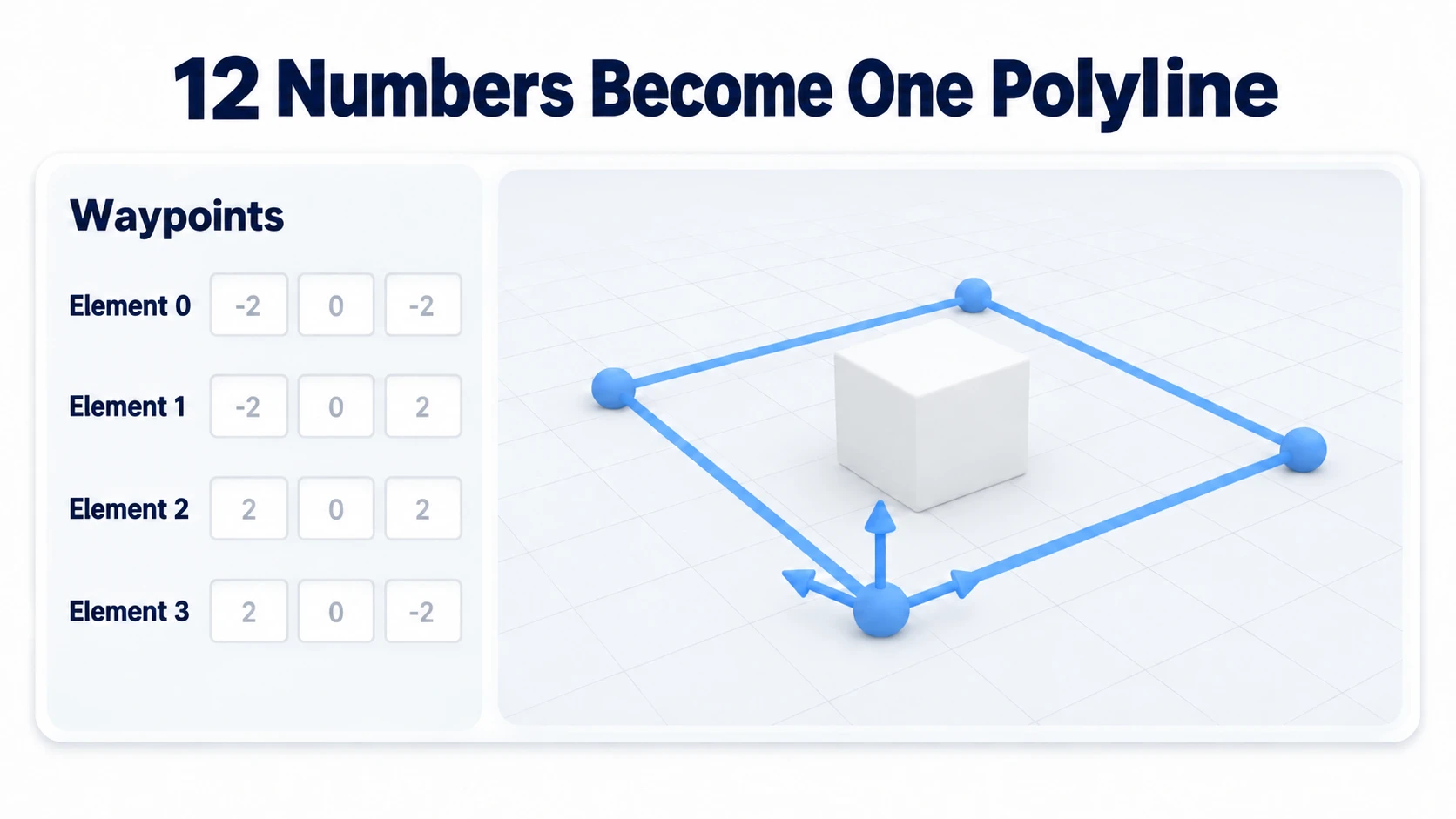

OnSceneGUI: Drawing in the Scene View

Implementing OnSceneGUI in a CustomEditor lets you draw handles and guides in the Scene view.

// Waypoint manager component
using UnityEngine;

public class WaypointManager : MonoBehaviour
{
    public Transform[] waypoints;
}

// Custom Editor (OnSceneGUI implementation)
using UnityEditor;
using UnityEngine;

[CustomEditor(typeof(WaypointManager))]
public class WaypointManagerEditor : Editor
{
    void OnSceneGUI()
    {
        WaypointManager manager = (WaypointManager)target;

        // Draw lines between waypoints
        Handles.color = Color.yellow;
        for (int i = 0; i < manager.waypoints.Length - 1; i++)
        {
            Handles.DrawLine(
                manager.waypoints[i].position,
                manager.waypoints[i + 1].position
            );
        }

        // Display movable handles
        for (int i = 0; i < manager.waypoints.Length; i++)
        {
            EditorGUI.BeginChangeCheck();
            Vector3 newPos = Handles.PositionHandle(
                manager.waypoints[i].position,
                Quaternion.identity
            );
            if (EditorGUI.EndChangeCheck())
            {
                Undo.RecordObject(manager.waypoints[i], "Move Waypoint");
                manager.waypoints[i].position = newPos;
            }
        }
    }
}

Use cases: This is useful for intuitively editing waypoint placement, attack range adjustments, spawn position configuration, and more directly in the Scene view.

PropertyDrawer: Customizing Property Display

PropertyDrawer lets you customize how specific properties are displayed.

Basic Usage

// Custom class
using UnityEngine;

[System.Serializable]
public class Range
{
    public float min;
    public float max;
}

// PropertyDrawer
using UnityEditor;
using UnityEngine;

[CustomPropertyDrawer(typeof(Range))]
public class RangeDrawer : PropertyDrawer
{
    public override void OnGUI(Rect position, SerializedProperty property, GUIContent label)
    {
        EditorGUI.BeginProperty(position, label, property);

        position = EditorGUI.PrefixLabel(position, GUIUtility.GetControlID(FocusType.Passive), label);

        var minRect = new Rect(position.x, position.y, position.width / 2 - 5, position.height);
        var maxRect = new Rect(position.x + position.width / 2 + 5, position.y, position.width / 2 - 5, position.height);

        EditorGUI.PropertyField(minRect, property.FindPropertyRelative("min"), GUIContent.none);
        EditorGUI.PropertyField(maxRect, property.FindPropertyRelative("max"), GUIContent.none);

        EditorGUI.EndProperty();
    }
}

Using PropertyAttribute (ReadOnly Attribute Example)

// Attribute definition
using UnityEngine;

public class ReadOnlyAttribute : PropertyAttribute
{
}

// PropertyDrawer
using UnityEditor;
using UnityEngine;

[CustomPropertyDrawer(typeof(ReadOnlyAttribute))]
public class ReadOnlyDrawer : PropertyDrawer
{
    public override void OnGUI(Rect position, SerializedProperty property, GUIContent label)
    {
        GUI.enabled = false;
        EditorGUI.PropertyField(position, property, label, true);
        GUI.enabled = true;
    }
}

Usage:

public class MyComponent : MonoBehaviour
{
    [ReadOnly]
    public int readOnlyValue;
}

AssetDatabase: Asset Operations

AssetDatabase is the API for manipulating assets within the project.

// Find all Prefabs
string[] guids = AssetDatabase.FindAssets("t:Prefab");
foreach (string guid in guids)
{
    string path = AssetDatabase.GUIDToAssetPath(guid);
    GameObject prefab = AssetDatabase.LoadAssetAtPath<GameObject>(path);
    Debug.Log(prefab.name);
}

// Create a ScriptableObject
MyScriptableObject asset = ScriptableObject.CreateInstance<MyScriptableObject>();
AssetDatabase.CreateAsset(asset, "Assets/MyAsset.asset");
AssetDatabase.SaveAssets();

// Delete, rename, and move assets
AssetDatabase.DeleteAsset("Assets/MyAsset.asset");
AssetDatabase.RenameAsset("Assets/OldName.asset", "NewName");
AssetDatabase.MoveAsset("Assets/OldPath/MyAsset.asset", "Assets/NewPath/MyAsset.asset");

Selection: Selected Objects

The Selection class lets you get and set the currently selected objects in the Unity Editor.

// Get the selected object
GameObject selectedObject = Selection.activeGameObject;

// Get multiple selections
GameObject[] selectedObjects = Selection.gameObjects;
foreach (GameObject obj in selectedObjects)
{
    Debug.Log(obj.name);
}

// Select an object
GameObject obj = GameObject.Find("MyObject");
Selection.activeGameObject = obj;

Undo: Implementing Undo/Redo

The Undo class enables Undo/Redo functionality in editor extensions.

// Record object changes
Undo.RecordObject(myObject, "Change Value");
myObject.value = 10;

// Record object creation
GameObject obj = new GameObject("New Object");
Undo.RegisterCreatedObjectUndo(obj, "Create Object");

// Record object deletion
Undo.DestroyObjectImmediate(obj);

Practical Examples

Example 1: Delete All Selected Objects

[MenuItem("Tools/Delete Selected Objects")]
static void DeleteSelectedObjects()
{
    if (Selection.gameObjects.Length == 0)
    {
        Debug.LogWarning("No objects selected.");
        return;
    }

    foreach (GameObject obj in Selection.gameObjects)
    {
        Undo.DestroyObjectImmediate(obj);
    }
}

[MenuItem("Tools/Delete Selected Objects", true)]
static bool ValidateDeleteSelectedObjects()
{
    return Selection.gameObjects.Length > 0;
}

Example 2: Custom Window for Browsing Assets

public class AssetBrowserWindow : EditorWindow
{
    List<GameObject> prefabs = new List<GameObject>();
    Vector2 scrollPosition;

    [MenuItem("Window/Asset Browser")]
    static void Open()
    {
        GetWindow<AssetBrowserWindow>("Asset Browser");
    }

    void OnEnable()
    {
        LoadPrefabs();
    }

    void LoadPrefabs()
    {
        prefabs.Clear();
        string[] guids = AssetDatabase.FindAssets("t:Prefab");
        foreach (string guid in guids)
        {
            string path = AssetDatabase.GUIDToAssetPath(guid);
            GameObject prefab = AssetDatabase.LoadAssetAtPath<GameObject>(path);
            prefabs.Add(prefab);
        }
    }

    void OnGUI()
    {
        if (GUILayout.Button("Reload"))
        {
            LoadPrefabs();
        }

        scrollPosition = EditorGUILayout.BeginScrollView(scrollPosition);

        foreach (GameObject prefab in prefabs)
        {
            EditorGUILayout.ObjectField(prefab, typeof(GameObject), false);
        }

        EditorGUILayout.EndScrollView();
    }
}

Best Practices

• Place scripts in the Editor folder - Editor extension scripts must always be in an Editor folder
• Implement Undo/Redo - Always use Undo.RecordObject when modifying objects
• Use SerializedObject - Use SerializedObject in CustomEditors for multi-object editing support
• Handle errors - Use try-catch to handle errors gracefully and maintain editor stability
• Consider performance - OnGUI is called every frame, so use caching for expensive operations

Summary

Unity editor extensions are a powerful technique for dramatically improving development efficiency.

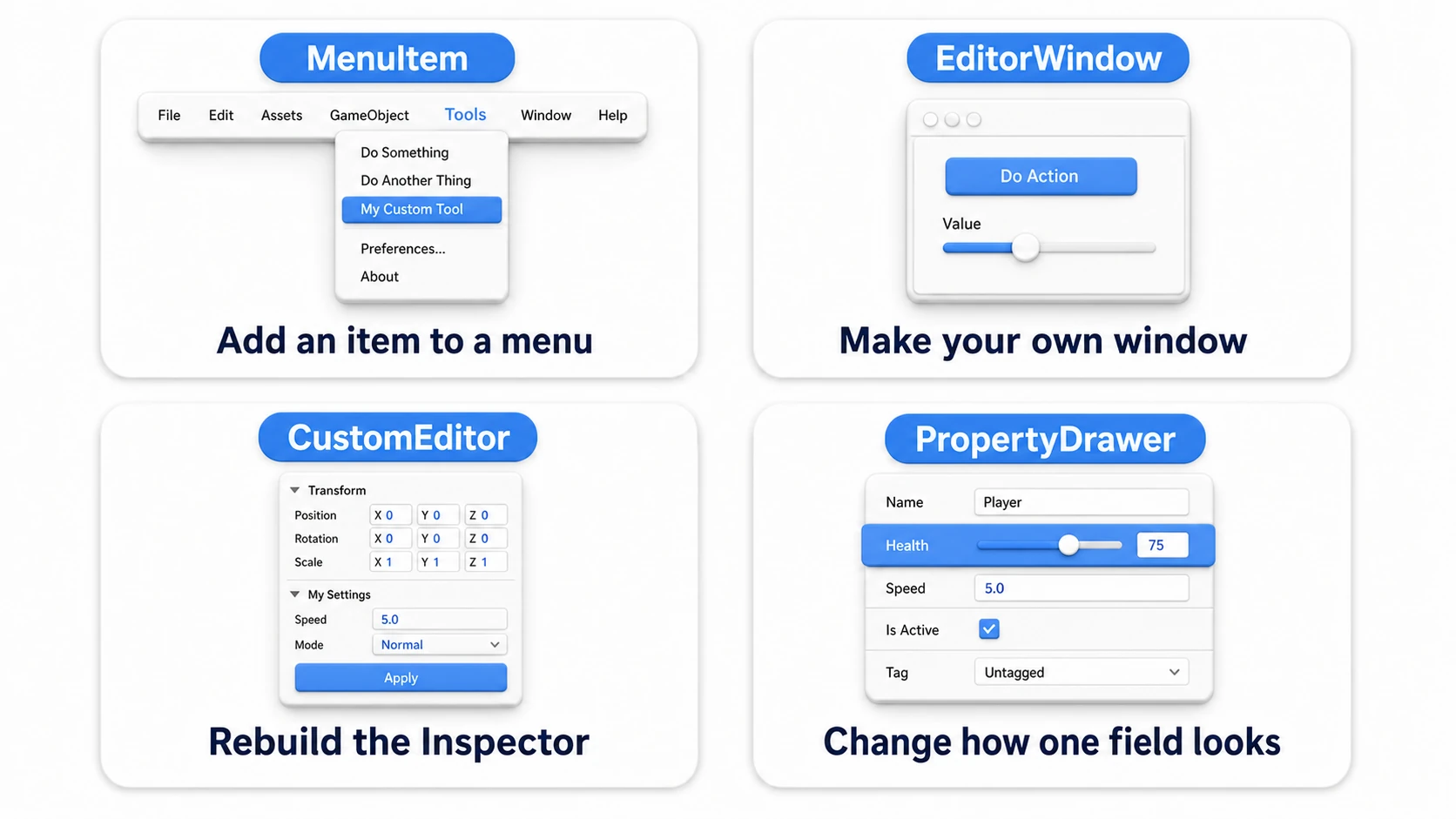

• MenuItem - Add items to the menu bar with optional shortcut keys
• EditorWindow - Create custom windows for complex tools
• CustomEditor - Customize the Inspector for user-friendly UIs
• PropertyDrawer - Customize how specific properties are displayed

Automate repetitive tasks, standardize team workflows, and build tools tailored to your project's unique needs.

Further Learning

• Unity Official Documentation - Editor Scripting
• Unity Official Documentation - Custom Editors
• Unity Official Documentation - Property Drawers
