【Unity】Health, Damage, and Invincibility Frames: Finishing 'The Attack Lands' as a System

Player movement works. Enemies are placed. The sword-swing animation is in. Then you start writing "when the attack hits, HP goes down" — and the parade of strange bugs begins. One swing deals damage three times. Touching an enemy drains HP like a waterfall. A dead enemy can still be hit, and the death logic runs twice.

Every one of these is a classic symptom of the same omission: no decision about roles and hit-counting in your damage pipeline. Building on trigger/collision basics and C# events, this article assembles health, attack detection, and invincibility frames into a complete, working arena.

What you'll learn

• The two causes behind "one swing, three hits"
• The Health / Hitbox / Hurtbox role split
• A Health component with one damage entrance (no negative HP, death fires once)
• An attack window that opens and closes with the swing
• Limiting hits to once per target per swing
• Separating invincibility (rule) from damage flashing (visuals)
• Hands-on: a complete player-vs-enemy arena

Tested with: Unity 2022.3 LTS / Unity 6

The classic symptom: one swing, three hits

First, know exactly why it breaks. Multi-hit bugs boil down to two causes.

• The target has multiple Colliders: if an enemy has separate Colliders for head, torso, and feet, one sword pass fires OnTriggerEnter once per Collider. The code is working correctly — it's just counting "three Colliders" instead of "one enemy"
• Re-contact while the hitbox stays out: leave the attack Collider enabled and every tiny enemy movement produces Exit→Enter pairs, landing several hits in one swing. Written with OnTriggerStay, it drains HP every physics update — fifty times a second

So what you need are two rules: what to count (targets, not Colliders) and when to count (once per swing). The rest of this article turns those two rules into components.

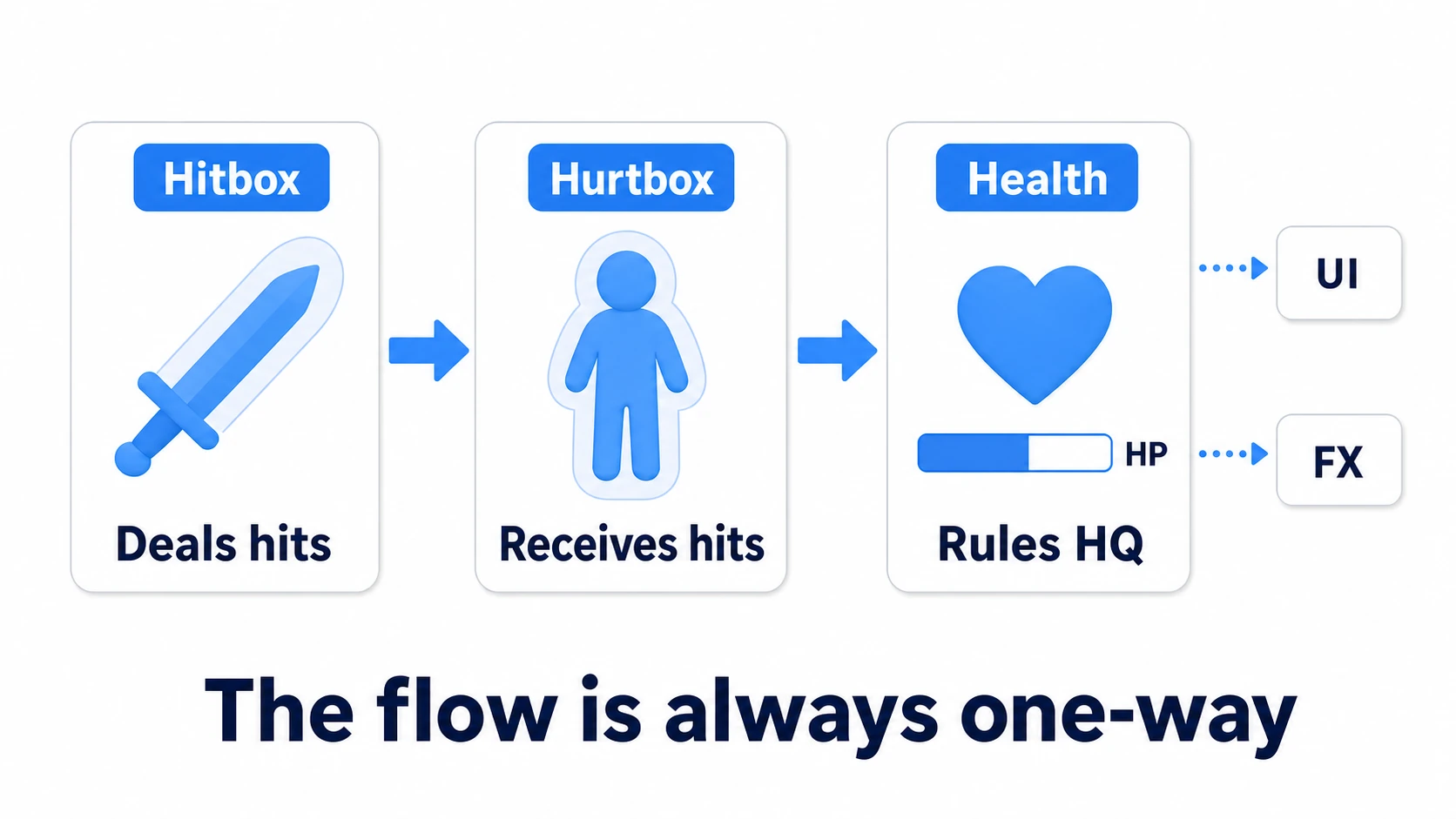

Split the roles: Health, Hitbox, Hurtbox

Write damage handling in one script and attack, defense, and presentation tangle until they collapse. Action games settle on three roles.

Role	Responsibility	Owner
Hitbox	"Where the attack can land right now." Knows the damage amount	Sword, bullet, enemy body slam
Hurtbox	"Where attacks are accepted." The Collider itself	Player and enemy bodies
Health	Every rule: HP changes, invincibility, death	Player, enemies, breakables

The flow is always one-directional: Hitbox touches Hurtbox → damage is handed to the target's Health → Health applies the rules and broadcasts the result as events. UI and sound effects just listen to Health's events; they never participate in damage math.

tips: The IDamageable interface — one entrance for hitting anything that can take damage — was built in the C# classes hands-on. This article's Health is its evolution: the same TakeDamage entrance, now with counting and invincibility rules added.

The Health component: one damage entrance

Build the rules headquarters first. The point: narrow all HP changes to a single TakeDamage(), and concentrate every rule inside it.

// Health.cs — the same component goes on players and enemies
using System;
using UnityEngine;

public class Health : MonoBehaviour
{
    [SerializeField] private int maxHealth = 50;
    [SerializeField] private float invincibleTime = 0.5f; // post-hit invincibility (seconds)

    public int Current { get; private set; }
    public bool IsInvincible => Time.time < invincibleUntil;

    private float invincibleUntil;
    private bool isDead;

    // All outcomes go out as events (UI, audio, and effects listen to these)
    public event Action<int, int> OnChanged; // (current, max)
    public event Action OnDamaged;           // the moment of a hit (drives effects)
    public event Action OnDied;              // death (fires exactly once)

    void Awake()
    {
        Current = maxHealth;
    }

    public void TakeDamage(int amount)
    {
        // Rule 1: the dead take no damage (no re-firing events on a corpse)
        if (isDead) return;

        // Rule 2: ignore hits while invincible
        if (IsInvincible) return;

        // Rule 3: HP never goes below zero
        Current = Mathf.Max(0, Current - amount);
        invincibleUntil = Time.time + invincibleTime;

        OnChanged?.Invoke(Current, maxHealth);
        OnDamaged?.Invoke();

        // Rule 4: the death event fires once, when the flag is set
        if (Current == 0)
        {
            isDead = true;
            OnDied?.Invoke();
        }
    }
}

With this class alone, half the FAQ symptoms — per-frame drain (stopped by invincibility), negative HP from overkill (stopped by the clamp), double death (stopped by the dead flag) — become structurally impossible. However carelessly the attacker spams TakeDamage, Health holds the line.

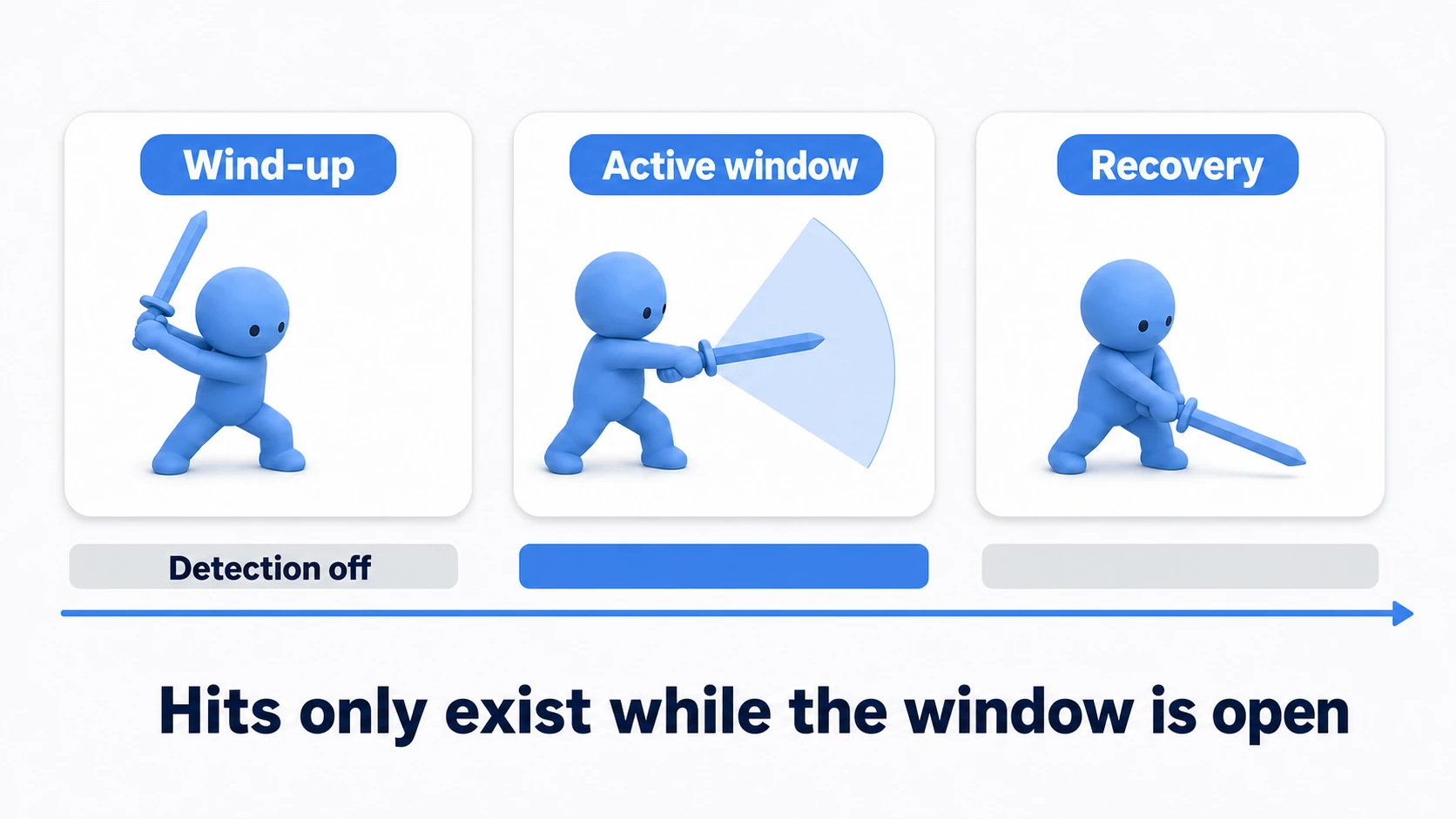

Attacks only exist inside the window

Now the attacking side. Instead of leaving the sword's Collider on, open the hit detection only for the instant the swing should connect — the attack window.

It's the fighting-game idea of startup, active, and recovery frames. The window buys you two things:

• Visuals and detection agree: an enemy brushing the blade during the wind-up takes nothing. The unfair "it hit before you swung" disappears
• It starves multi-hits: the shorter the window, the fewer chances for re-contact double hits

Implementation is just "keep the Collider disabled, open and close it with a coroutine" (included in the next section's code). When you want frame-accurate sync with the animation, Animation Events tied to the swing are the next step.

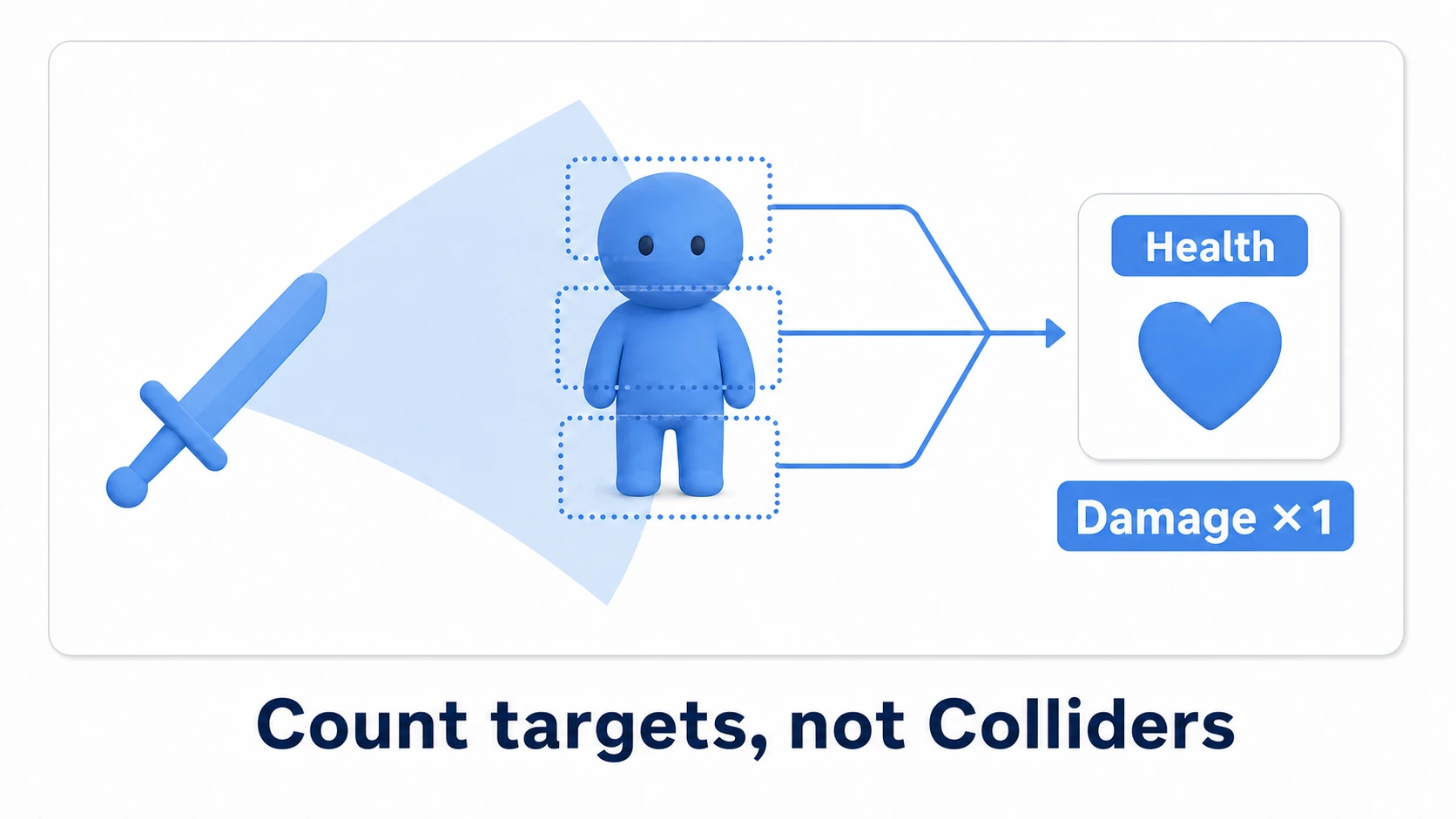

One hit per target, per swing

The last rule is counting. Each multi-hit cause gets its own tool.

• Bundle Colliders into targets: from the touched Collider, take GetComponentInParent<Health>() — the parent body's Health. Head, torso, or feet, every contact resolves to the same single Health
• Remember who this swing already hit: clear a HashSet<Health> when the swing starts and record every victim. Already in the set? Skip — once per swing, guaranteed

// SwordHitbox.cs — attack window + once-per-swing management
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

[RequireComponent(typeof(Collider))]
public class SwordHitbox : MonoBehaviour
{
    [SerializeField] private int damage = 10;
    [SerializeField] private float activeTime = 0.2f; // window length

    private Collider hitCollider;
    private readonly HashSet<Health> hitThisSwing = new HashSet<Health>();

    void Awake()
    {
        hitCollider = GetComponent<Collider>();
        hitCollider.isTrigger = true;
        hitCollider.enabled = false; // detection stays closed by default
    }

    // Whatever reads attack input (PlayerAttack etc.) calls this
    public void Swing()
    {
        StopAllCoroutines();
        StartCoroutine(OpenWindow());
    }

    IEnumerator OpenWindow()
    {
        hitThisSwing.Clear();        // reset this swing's records
        hitCollider.enabled = true;  // open the window
        yield return new WaitForSeconds(activeTime);
        hitCollider.enabled = false; // close it
    }

    void OnTriggerEnter(Collider other)
    {
        // Whichever Collider was touched, bundle to the one body Health
        Health health = other.GetComponentInParent<Health>();
        if (health == null) return;

        // True only if this swing hasn't hit them yet
        if (hitThisSwing.Add(health))
        {
            health.TakeDamage(damage);
        }
    }
}

That's the attacking side done. Open the window (Swing) → count contacts per body → let one hit through per swing. Three rules in sixty lines.

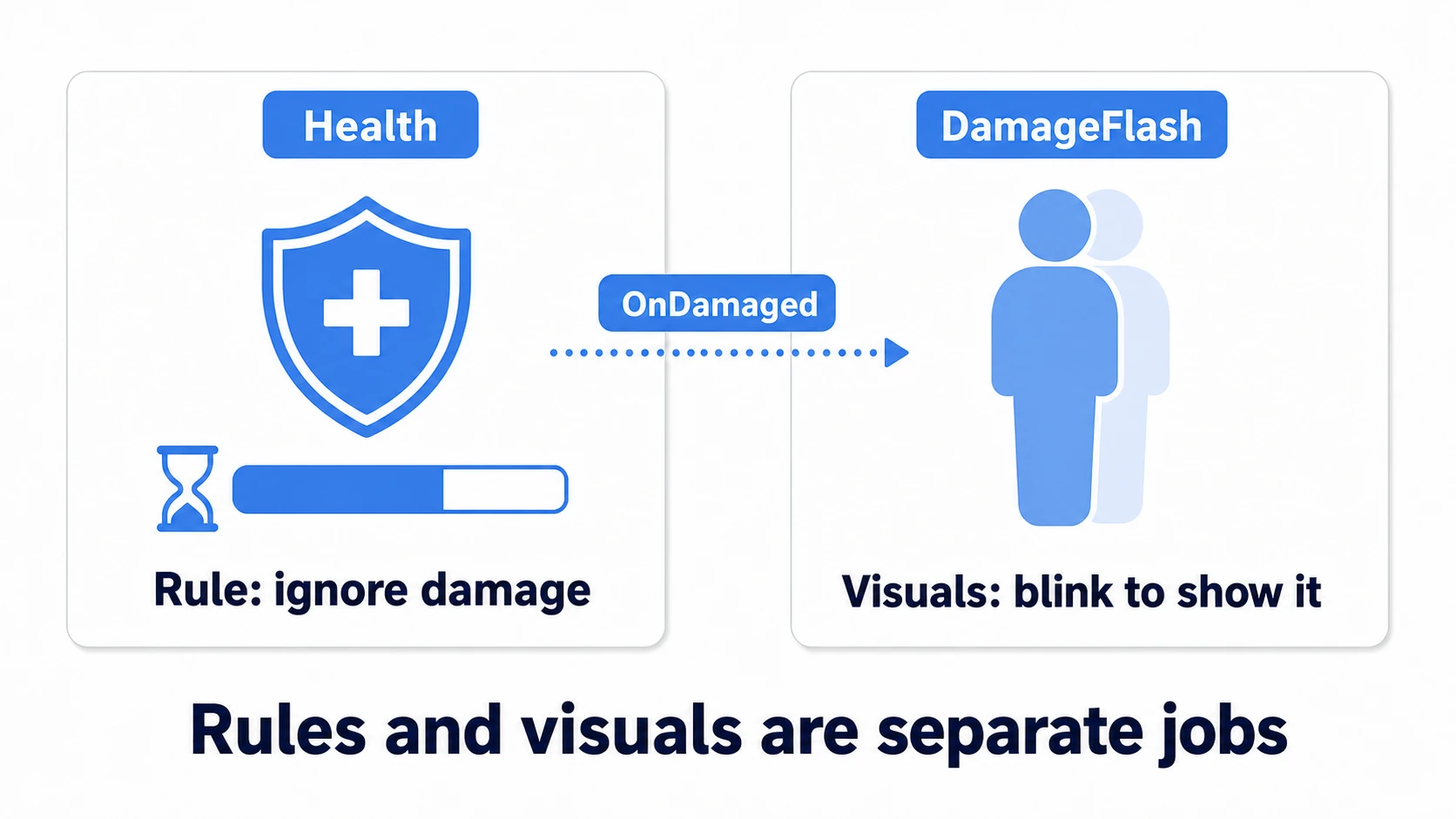

Invincibility: separate the rule from the visuals

The invincibility inside Health is a rule. But the player needs to see they're invincible — the classic cue is a flashing sprite or model.

The important part: don't write the flashing inside Health. Invincibility is "whether damage is accepted"; flashing is "how that's shown." Put them in separate components, connected by Health's events.

// DamageFlash.cs — visuals: blink for as long as invincibility lasts
using System.Collections;
using UnityEngine;

public class DamageFlash : MonoBehaviour
{
    [SerializeField] private Health health;
    [SerializeField] private Renderer bodyRenderer;
    [SerializeField] private float flashInterval = 0.1f;

    void OnEnable()
    {
        health.OnDamaged += StartFlash;
    }

    void OnDisable()
    {
        health.OnDamaged -= StartFlash; // never forget to unsubscribe
    }

    void StartFlash()
    {
        StopAllCoroutines();
        StartCoroutine(Flash());
    }

    IEnumerator Flash()
    {
        // The visuals (blinking) last exactly as long as the rule (invincibility)
        while (health.IsInvincible)
        {
            bodyRenderer.enabled = !bodyRenderer.enabled;
            yield return new WaitForSeconds(flashInterval);
        }
        bodyRenderer.enabled = true; // always end visible
    }
}

With this split, switching from blinking to a white flash — or adding a sound — touches zero characters of Health. You just add another listener.

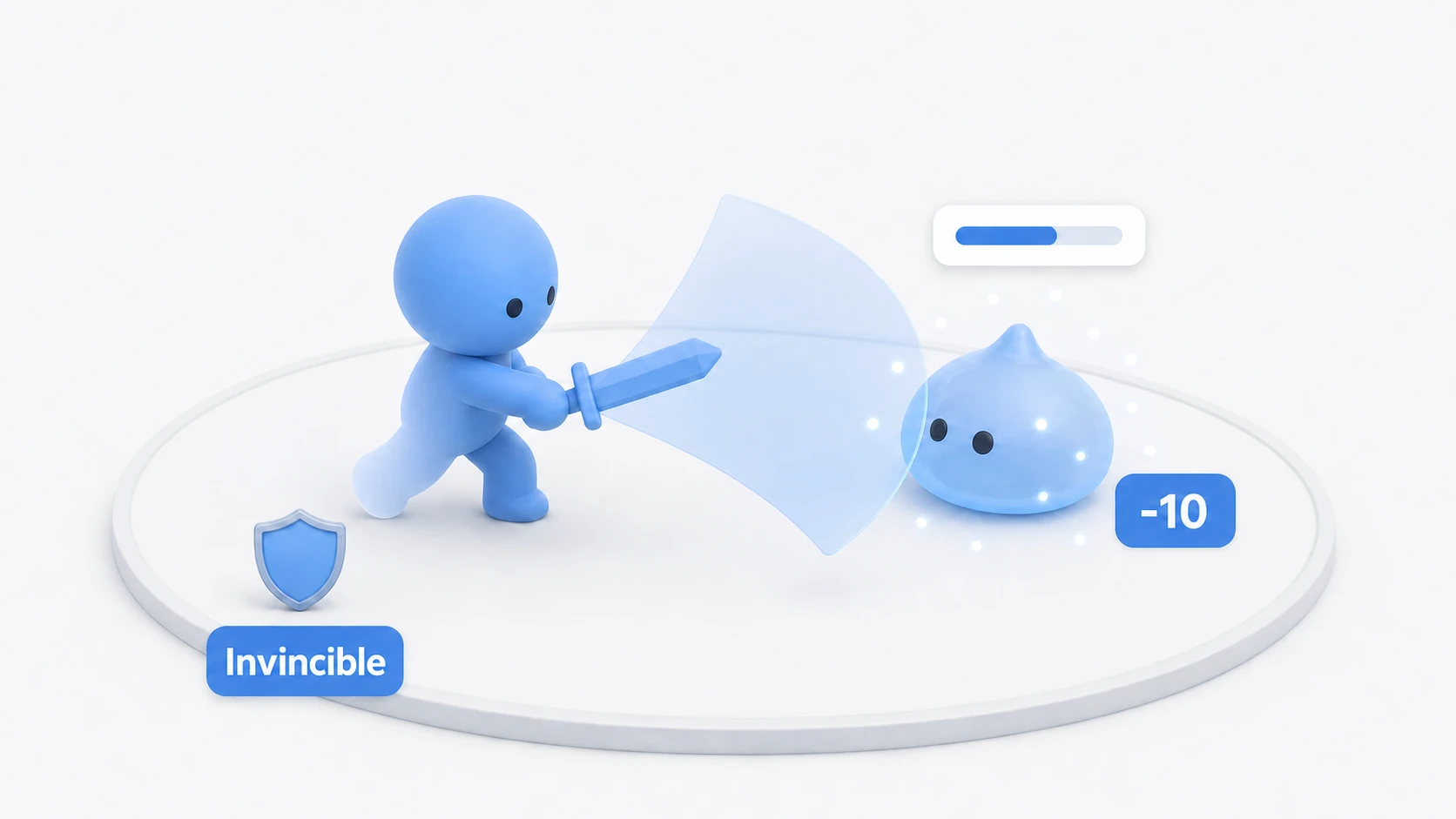

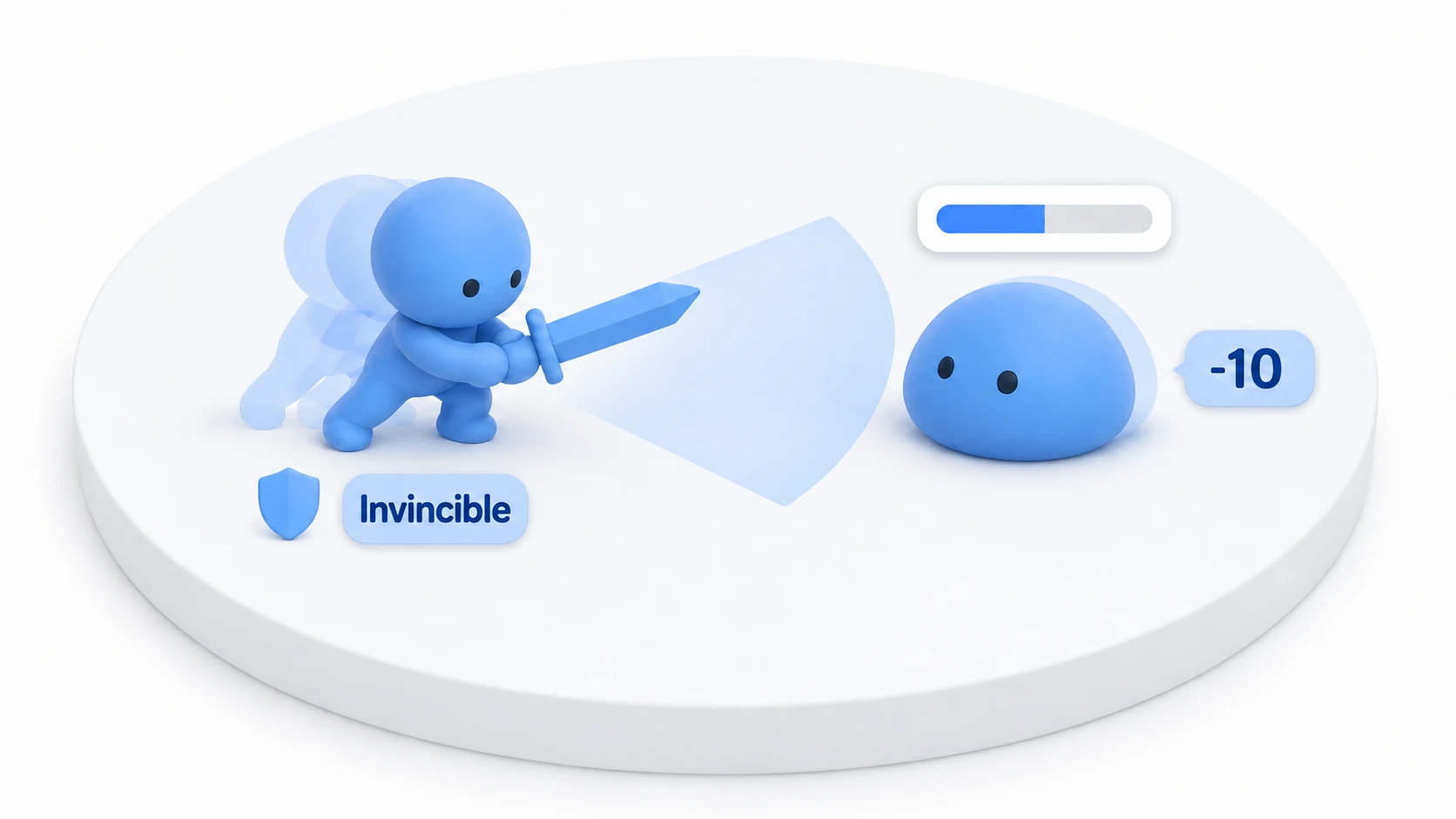

Hands-on: finish the player-vs-enemy arena

All the parts exist. Build the small arena — player's sword versus enemy's body slam — and watch every rule do its job. A metroidvania's melee, a top-down ARPG's close combat, a roguelike's contact damage: all of them are variations of this exact setup.

The setup:

• Player: Health + DamageFlash. A child object holds the sword with SwordHitbox (Collider set to IsTrigger)
• Enemy: Health + DamageFlash. Its body's trigger Collider gets the contact damage below

// EnemyContactDamage.cs — body slam: ATTEMPT damage while touching
using UnityEngine;

public class EnemyContactDamage : MonoBehaviour
{
    [SerializeField] private int damage = 5;

    void OnTriggerStay(Collider other)
    {
        Health health = other.GetComponentInParent<Health>();
        if (health != null)
        {
            // Called every physics update — but Health ignores it while invincible.
            // Throttling is the RULE side's job (Health), not the attacker's
            health.TakeDamage(damage);
        }
    }
}

Notice that OnTriggerStay attempts damage every physics update, yet HP doesn't waterfall. The receiving Health meters the intake with its invincibility window, so the attacker gets to stay simple. Contact naturally produces the action-game rhythm of "one hit each time invincibility expires."

Press Play and poke the historically fragile spots, in order. Deliberately give the enemy two Colliders — head and torso — and land one swing: if HP drops by exactly one hit, the bundling and the record set are doing their jobs. Set the enemy's HP to 1 and hit it with a 10-damage sword: HP stops at 0, and the death log prints exactly one line. Hit the corpse once more: nothing happens, which means the dead flag works end to end. If any of these breaks, you already know where to look — multi-hits point to GetComponentInParent and the HashSet; negative HP or double deaths point to the two guards at the top of TakeDamage.

Two takeaways. All rules live inside Health (attackers merely attempt — so adding new attack types breaks nothing). Count per target, per swing (the moment you count per Collider, multi-hits return).

Bonus: things worth knowing early

• Bullets, traps, and healing use the same entrance: a projectile is a "moving Hitbox," a trap is a "stationary Hitbox," and healing is a Heal() next to TakeDamage — the single-entrance design absorbs all of them. For projectile hit detection itself, see the Raycast article
• Decide the knockback exception up front: does invincibility block damage but allow pushback, or block everything? Both are buildable — starting without deciding is what tangles the code
• Careful with mass enemy disposal: if dead enemies return to an object pool instead of Destroy, then resetting HP and the invincibility timer — and unsubscribing events — becomes part of the pool-return routine

Summary

• Multi-hits come from counting per Collider or leaving the hitbox out
• Three roles: Hitbox (attack), Hurtbox (receive), Health (rules) — flow is always one-directional
• Concentrate every rule in Health's TakeDamage: clamp, invincibility, dead flag, events firing once
• Attacks exist only inside the window; bundle targets with GetComponentInParent and record them in a HashSet for once-per-swing
• Invincibility is a rule; flashing is a visual. Connect them with events; never write effects inside Health

Swap one of your game's enemies for one with two Colliders right now — how many times does the damage land? If the answer is once, this system is already finished.
