Rotation and Interpolation Basics in UE5: Choosing Among Rotator, Interp To, and Lerp

You build a turret facing the player and it snaps around instantly. You want it heavier, turning as it takes aim. What you use for that is interpolation , closing on a direction gradually.

What matters is separating "which way do I want to face" from "how do I close on it from my current facing". This article first builds a turret that immediately faces the player, then adds interpolation and compares the motion.

What You'll Learn

• A Rotator's three angles and Yaw, which represents horizontal facing
• Why rotating from 350 degrees to 10 can take the long way
• The difference in what RInterp To and Lerp compute
• How to tune how fast the turret follows the player

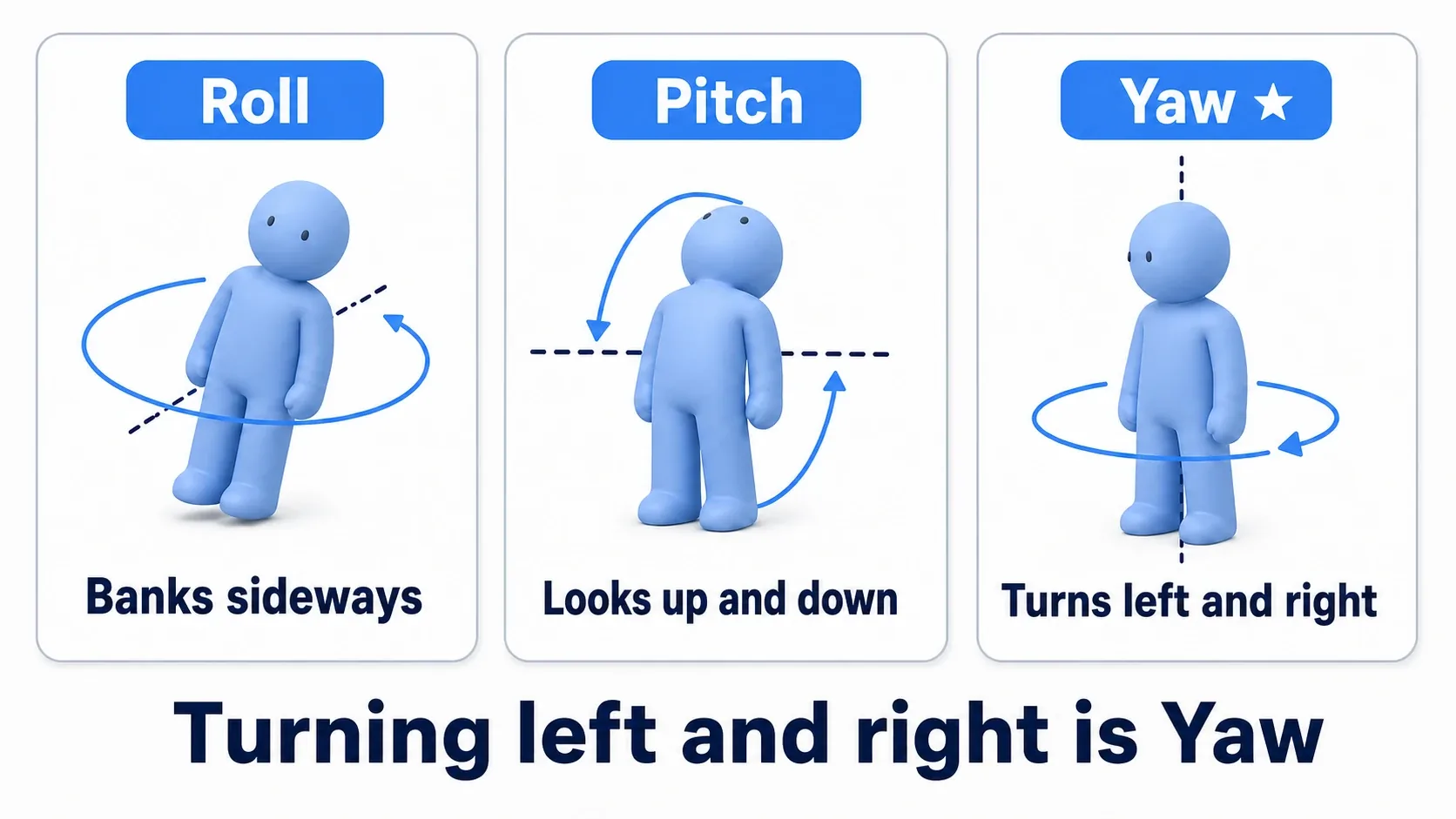

A Rotator represents facing with three angles

The type commonly used for facing in UE is a Rotator . It bundles three angles — Roll, Pitch, and Yaw — in degrees.

Component	Axis it rotates around	The motion it suggests
Roll	Around the X axis	A plane banking left or right
Pitch	Around the Y axis	The nose pointing up or down
Yaw	Around the Z axis	Turning left or right horizontally

"Around an axis" means using that axis as the rotation's core. UE's base orientation is X forward, Y right, and Z up. Yaw, cored on Z, changes horizontal facing without looking up or tipping sideways.

Our turret uses Yaw only . The barrel's front extends along X and turns left and right atop the base.

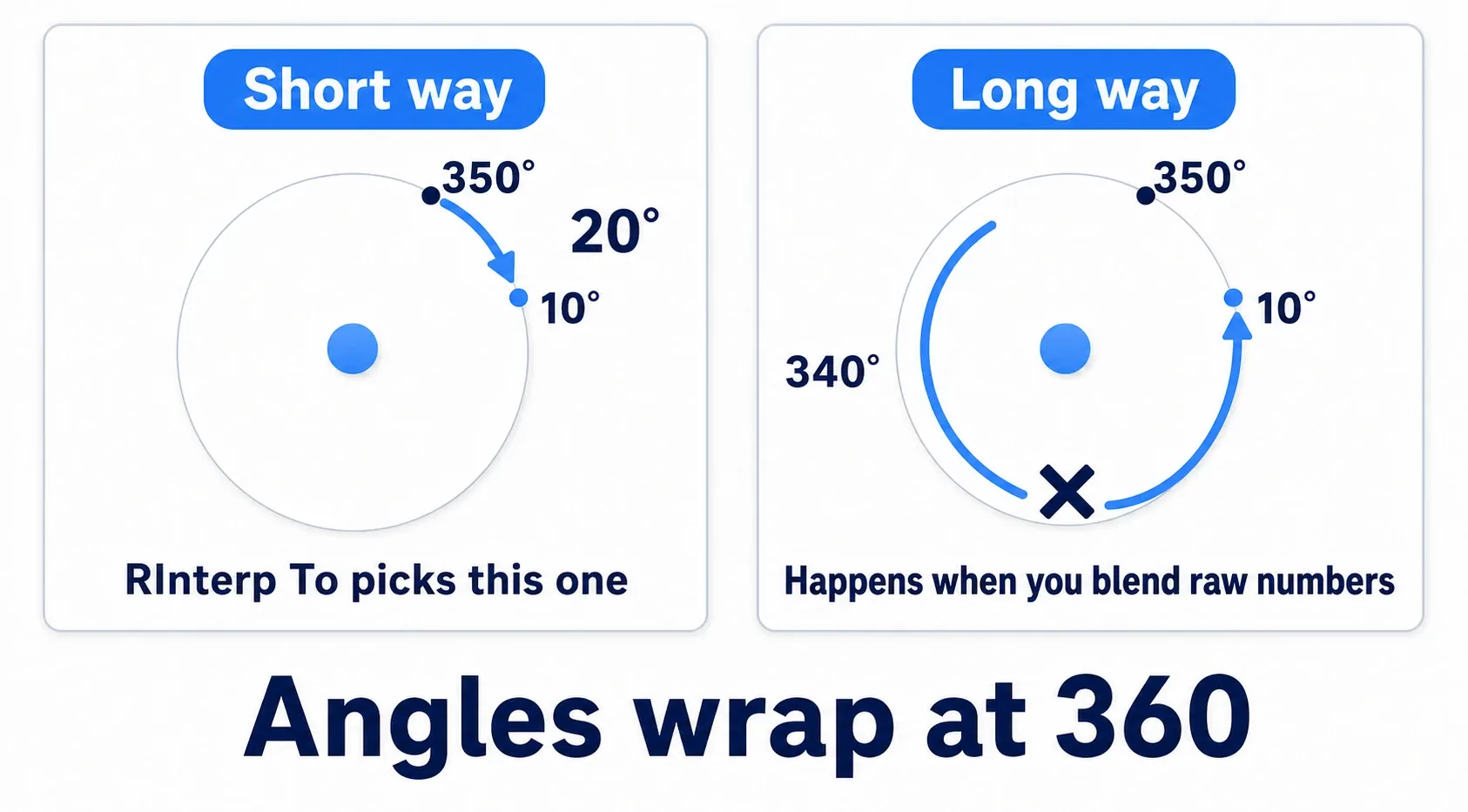

350 degrees and 10 are visually close

What is slightly tricky about angles is that 360 degrees returns you to the start. 350 and 10 are 340 apart numerically but adjacent as facings.

• Going 350 → 360 (0) → 10: a 20-degree shortcut
• Decreasing 350 → 180 → 10: a 340-degree detour

Mixing 350 and 10 half and half as plain numbers, for instance, gives 180, not the 0 degrees along the shortcut. That is how "I wanted a small turn but it swung wide" happens.

For yaw-only tracking as here, use the rotation-specific RInterp To . When using Lerp (Rotator) , also check Shortest Path , the setting that "chooses the shorter way around". A node being rotation-specific does not mean every setting rotates the same way.

Note that 350 degrees and -10 are the same facing. A retrieved angle displaying as negative does not by itself mean the rotation is broken.

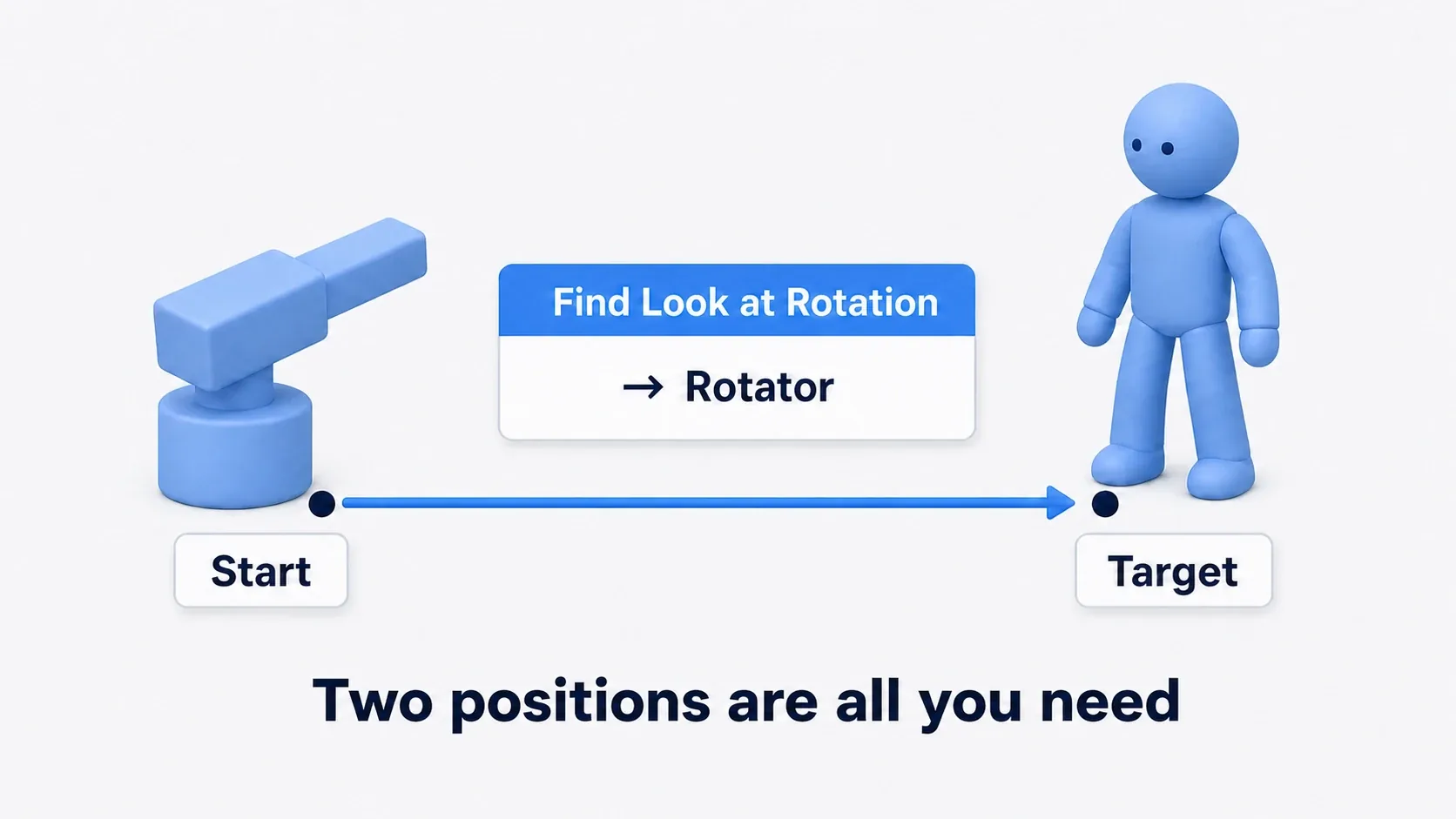

Build the target direction and apply it

For the turret to face the player, first compute "which facing points at the player". Find Look at Rotation does that.

Input / output	What we pass here
Start	The turret's rotation pivot position
Target	The player's position
Return Value	The facing that looks from Start toward Target

Start and Target are Vectors representing positions , not angles. Passing two positions returns a Rotator pointing forward X from Start toward Target.

That alone does not rotate the turret, though. You need logic that applies the computed facing to the part you want rotated . The exercise below uses Set World Rotation to apply the result to the turret's head.

When the target is above or below, Find Look at Rotation's result includes Pitch. To face horizontally only, split the three angles with Break Rotator and pass Yaw alone into Make Rotator . Setting Make's Roll and Pitch to 0 gives a horizontal-only target.

Break extracts values and Make bundles them. Without writing difficult angle math, that combination selects the components you want.

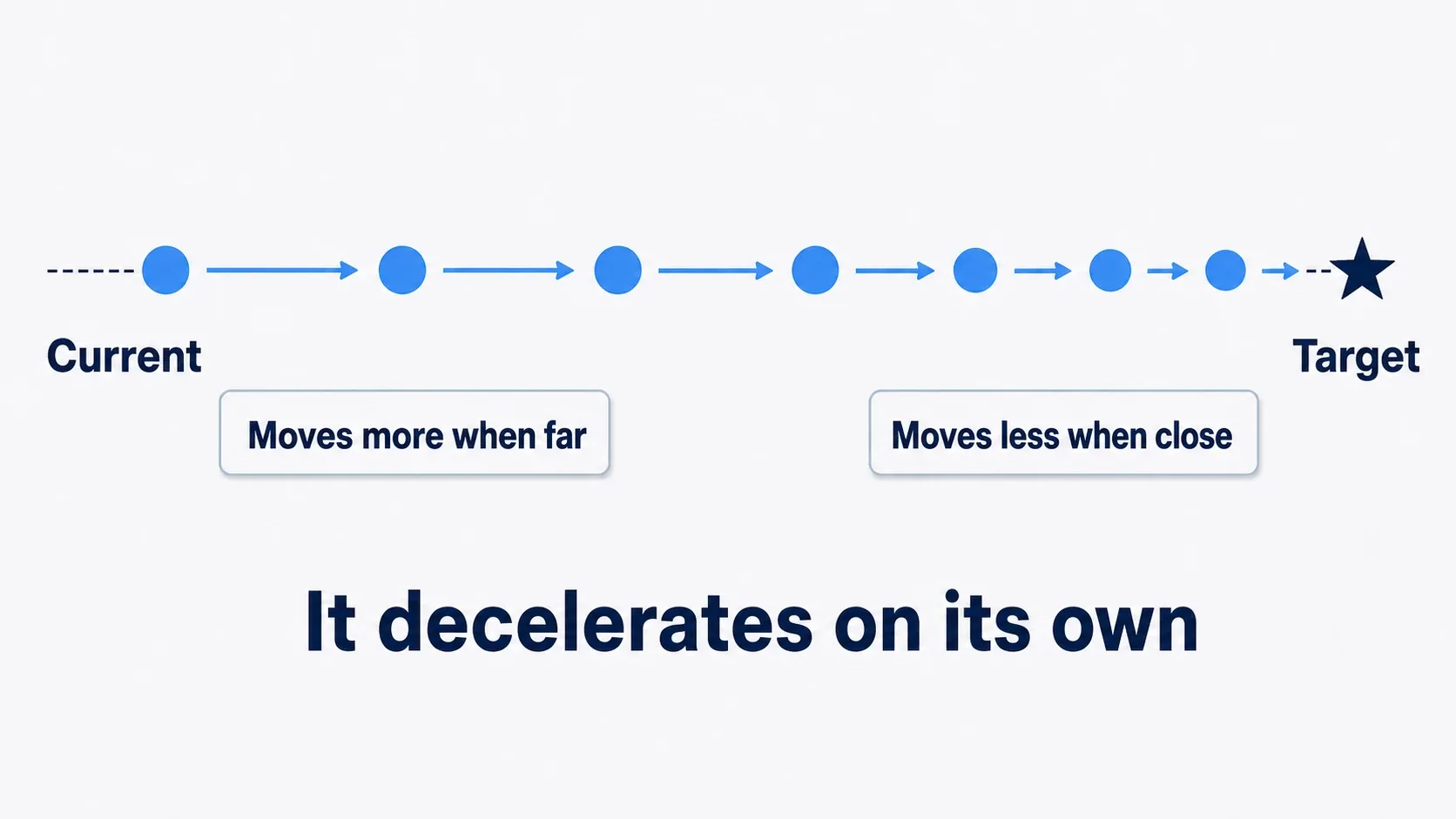

RInterp To nudges the current facing closer

Setting the target facing directly switches to it on that update. Inserting RInterp To computes a facing slightly closer to the target from the current one .

The entry point for repeating that is Event Tick , the event called as the game advances a frame, whose Delta Seconds gives the time since the previous update.

Pin	What goes in	Meaning
Current	The current facing	Close in from here
Target	The target facing	The direction you want to face
Delta Time	Tick's Delta Seconds	How many seconds since the last update
Interp Speed	Start from 2 here	The strength of closing on the target
Return Value	The computed result	The facing to set on this update

Delta Time is the elapsed time corresponding to one update. How many updates fit in a second varies, so rather than "one update, so turn a fixed amount", pass the time that actually elapsed.

Interp Speed is neither degrees per second nor a completion time. With positive values, larger closes on the target faster. Under the same conditions, it also turns more when far from the target and less as it nears, so the finish eases in.

What matters here is this repetition.

1. Read the current facing and the current target facing toward the player
2. Compute this update's facing with RInterp To
3. Apply that facing with Set World Rotation
4. On the next Tick, compute again from the applied facing

RInterp To does not itself advance time or keep an Actor moving. It closes on the target because Current is reread as "the current facing" each time rather than pinned to the starting facing.

Nodes with the same idea exist beyond rotation.

Node	Value it computes	Example use
RInterp To	Rotator	A turret tracking and facing a target
VInterp To	Vector	Closing a camera's position on a target
FInterp To	Float	Closing a displayed HP number on the actual HP

We use RInterp To since this is rotation. The other two likewise combine with logic applying the returned value to a position or display.

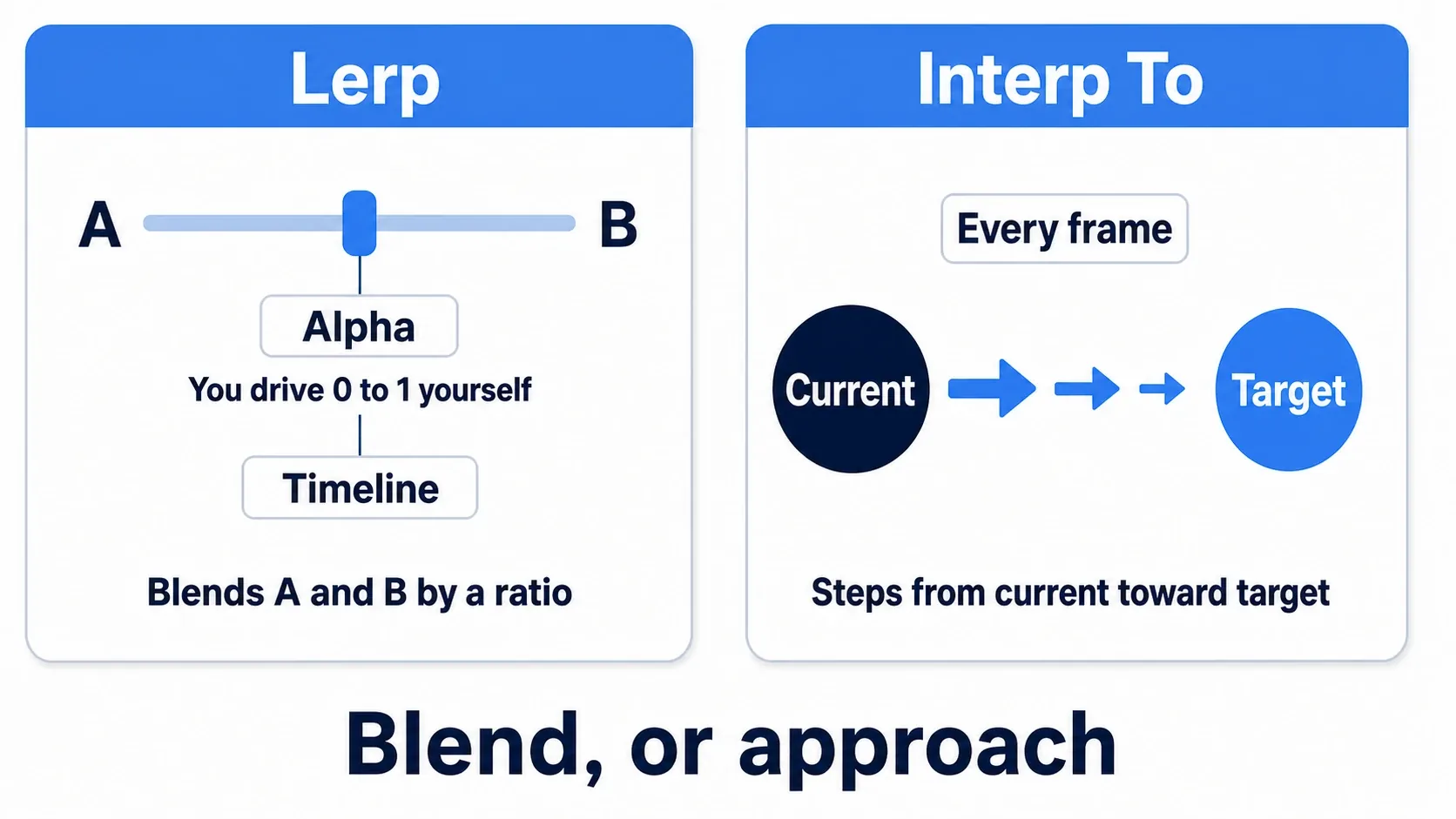

Lerp picks a point between a start and an end

The other common node, Lerp , picks where between A and B to use via Alpha . Using Alpha from 0 to 1, 0 is A, 0.5 is the midpoint, and 1 is B.

Consider Lerp (Rotator) with Roll and Pitch at 0 and Yaw from 0 to 90 degrees.

A	B	Alpha	The Yaw chosen
0	90	0	0
0	90	0.5	45
0	90	1	90

Fixing A and B and leaving Alpha at 0.5 gives 45 no matter how many times you compute. For smooth motion, change Alpha over time and Set the result each time.

Moving Alpha from 0 to 1 over two seconds with a Timeline, for instance, builds motion running from a fixed start to a fixed end in two seconds. Rather than telling Lerp "two seconds", the Timeline manages the two seconds and Lerp computes the value along the way .

Motion you want to build	The easy combination
Following from the current facing as the target moves	Tick + RInterp To + Set
Moving from a fixed start to a fixed end over two seconds	Timeline + Lerp + Set

That is a guide from purpose. Lerp also closes in when you feed the current value into A each time, even with Alpha at 0.5. Doing that as "half each frame" makes the follow speed depend on update count, though. For our turret, build with RInterp To, which takes elapsed time.

Hands-On: build a turret that tracks the player

Use a Third Person Blueprint project. Where a "Variant" is offered at creation, choose None . Knowing how to create components and variables and connect pins in Blueprint is enough.

We build a turret whose base stays fixed while the barrel above faces the player. It fires nothing; we focus on the turning difference.

1. Separate the pivot from the barrel

Create a Blueprint Class BP_Turret with Actor as the parent and add these components.

Name	Component type	Parent	Role
Base	Static Mesh	DefaultSceneRoot	The fixed base
Head	Scene	DefaultSceneRoot	The rotation center
Barrel	Static Mesh	Head	The barrel extending forward

A Scene component is a part with position and rotation but no visuals. Rotating Head rotates its child Barrel too. We use it to make the top of the base the turning center rather than the barrel's middle.

Assign the standard Cylinder to Base and the standard Cube to Barrel. Both meshes live in Engine/BasicShapes ; if you cannot find them, show engine content in the asset picker.

In "Details", set Relative Location, measured from the parent, and Scale as follows.

Name	Relative Location	Scale
Base	X=0 / Y=0 / Z=40	X=1.2 / Y=1.2 / Z=0.8
Head	X=0 / Y=0 / Z=80	X=1 / Y=1 / Z=1
Barrel	X=75 / Y=0 / Z=0	X=1.5 / Y=0.3 / Z=0.3

Set every rotation to 0. Head's and the meshes' Mobility is Movable, Simulate Physics on both meshes is off, and Collision Presets is NoCollision. Movable means position and rotation can change during play.

Offsetting the Cube's center 75 cm along X from Head and making it 150 cm long extends the barrel forward from the pivot. That reads its facing more clearly than a cube identical front and back.

Place one BP_Turret in the level with the Actor's rotation at 0, Scale 1, 1, 1 , and the Root's height matched to the floor. Put it somewhere the player can walk around.

2. Update only when the player exists

Place Get Player Pawn in BP_Turret's event graph with Player Index 0. This retrieves the Pawn the first player controls.

Connect its Return Value into the Input Object of the Is Valid with a white exec pin. Wire Event Tick's white output into Is Valid's white input and use the Is Valid side's exit later. Leave the Is Not Valid side empty.

Is Valid confirms the retrieved object is usable right now. When the player does not exist yet or was destroyed, it keeps the rotation update from running.

3. Build the target facing the player

Drag Head from the component list into the graph and create Get World Location from its blue output. That is Head's position relative to the whole world.

From Get Player Pawn's Return Value, create Get Actor Location . Then place Find Look at Rotation and connect the following.

Find Look at Rotation input	Connected from
Start	Head's Get World Location
Target	The player's Get Actor Location

The point is aligning both to world-space positions. Start uses Head, the turret's pivot, not the Root on the floor.

Create Break Rotator from Find Look at Rotation's Return Value. Connect its Yaw alone into Make Rotator's Yaw, with Make's Roll and Pitch at 0.

Getting positions, Find Look at Rotation, Break, and Make are nodes that compute and return values . Rather than wiring white exec lines in sequence, pass values through the colored pins.

4. First, snapping to face the target

Create Set World Rotation from Head's blue output. Confirm Target is Head and pass Make Rotator's Return Value into New Rotation. Connect the Is Valid side's exit into its white exec input.

Compile, Play, click the game screen, and walk around the turret. Success is the base staying still while only the barrel snaps to face the player. Jumping does not tilt the barrel up or down; it stays horizontal.

Directly above or below cannot define a horizontal facing, so walk around at a distance rather than through the base's center at first.

5. Add interpolation to the same turret

Stop Play, create a Float variable TurnSpeed , and set its default to 2 after compiling.

Place RInterp To and connect these inputs.

Input	Connected from
Current	Get World Rotation created from Head
Target	The Make Rotator Return Value from earlier
Delta Time	Event Tick's Delta Seconds
Interp Speed	Get TurnSpeed

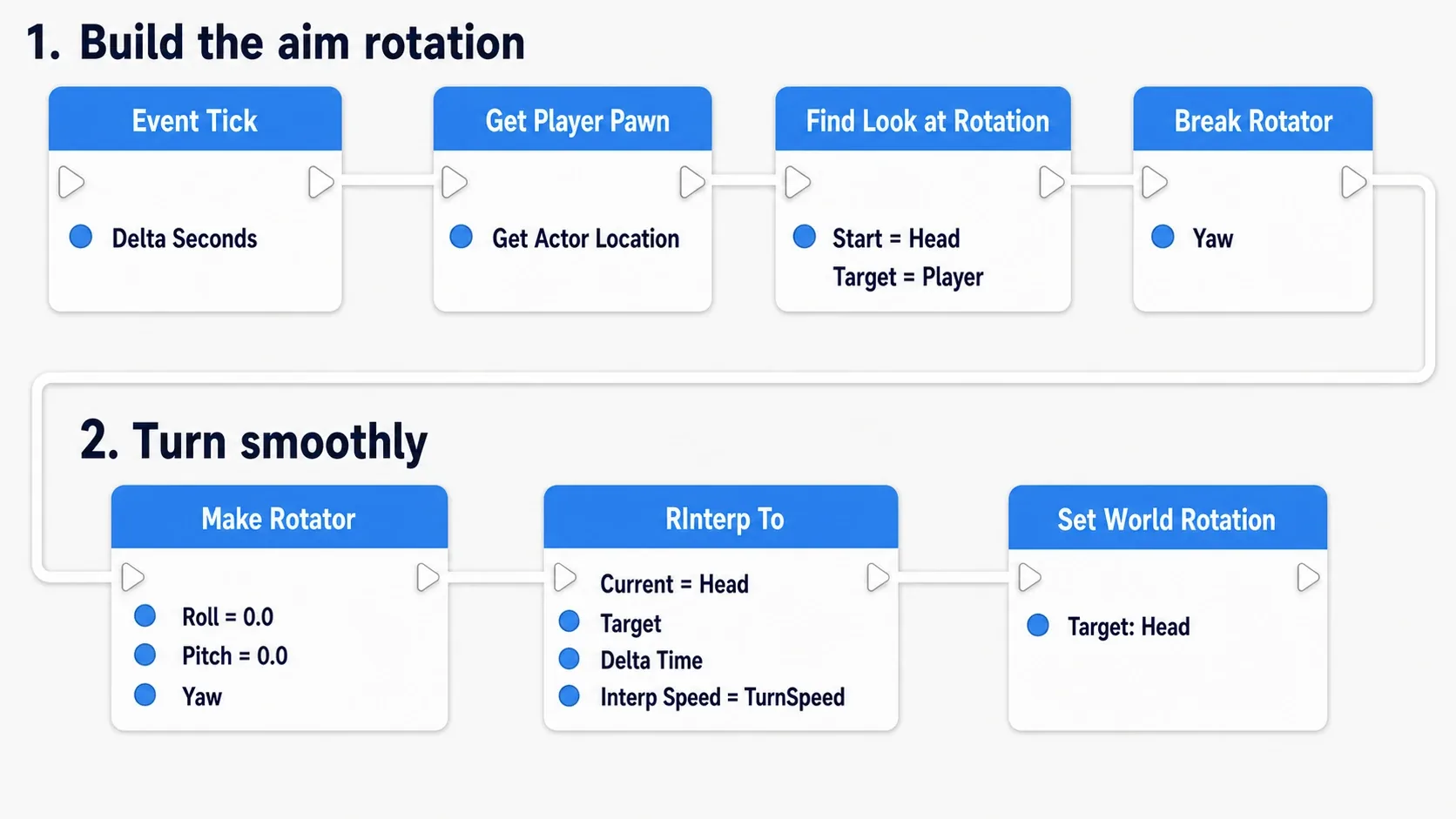

Now connect RInterp To's Return Value into Set World Rotation's New Rotation, replacing the line that came straight from Make Rotator. The white exec line from Is Valid and Head as Target stay as they are.

The Set World Rotation in the diagram is the one from step 4. Do not add a new one; swap what feeds New Rotation. Leave Sweep off.

Get World Rotation returns Head's facing just before this update. Closing that slightly toward the target and writing it back to Head lets the next update continue from there.

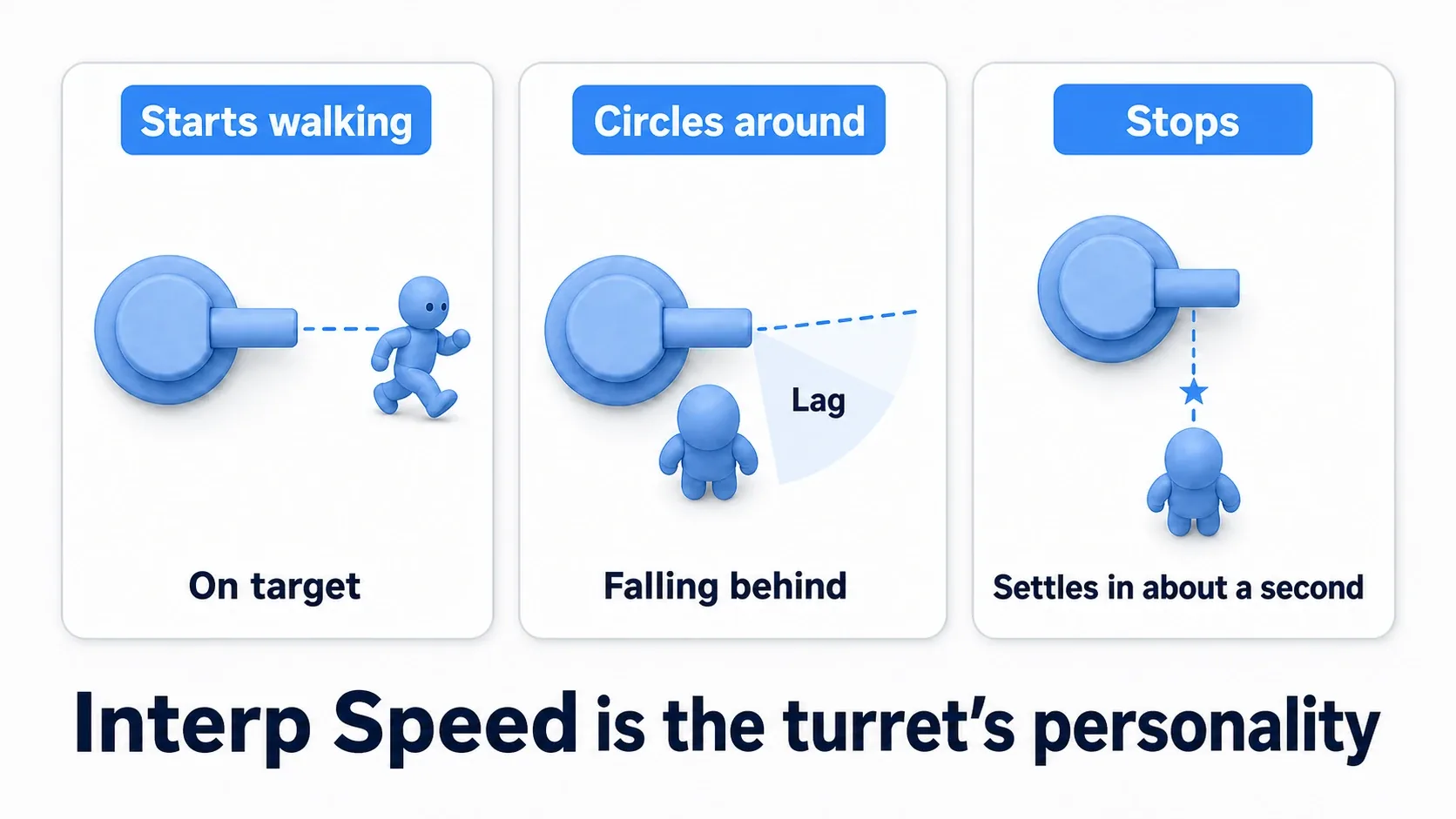

Change the speed and confirm what stops it

Compile, replay, and walk around the turret the same way. The barrel now follows with a slight lag, and standing still gradually closes the gap until it faces you.

Stop Play, change TurnSpeed's default to 10 , and try again. It should track faster than at 2. Return it to 2 after checking.

What to try	What to compare
Walk around at a similar distance	Whether the barrel lags differently at 2 versus 10
Stand still	Whether the turn slows as it approaches the target
Jump	Whether the barrel stays horizontal
Circle to the turret's far side	Whether the base stays fixed while the barrel tracks

We did not define "it always faces you exactly in N seconds". It varies with the initial angle difference and update interval, so compare tracking by moving the same way.

What happens without Delta Time

Stop Play, disconnect the line into RInterp To's Delta Time, and set the value to 0. Leave TurnSpeed at 2.

Compiling and playing shows the barrel no longer closing on the target, because you are saying "zero seconds passed since the last update". After checking, stop Play, reconnect Tick's Delta Seconds, and confirm it turns again.

Feeding an arbitrary positive constant into Delta Time, meanwhile, uses that constant every time instead of real elapsed time. That is what makes follow speed depend on update count. Keep "not advancing due to an unconnected 0" separate from "speed skewed by a fixed value".

Also, an Interp Speed of 0 is not for stopping. In RInterp To it switches straight to the target. To halt, add a mechanism that stops the update, such as a condition preventing Set World Rotation from running.

When it does not work

Symptom	Where to check
It snaps to the target	Whether Make Rotator connects straight to the Set. Whether Interp Speed is 0 or too large
The facing never changes	Whether a white line runs from the Is Valid side to the Set, and whether Delta Seconds reaches Delta Time
It turns a bit and stops there	Whether Current holds a fixed starting value. Whether you use Head's Get World Rotation
The barrel tilts up and down	Whether Make Rotator's Roll and Pitch are 0 and only Yaw is passed
The whole base rotates	Whether you used Set Actor Rotation. Whether Set World Rotation's Target is Head
The barrel points sideways or backward	Whether Barrel is Head's child with rotation 0 and extends along X

Bonus: good to know up front

World and Relative differ in what the facing is measured against. We built the target from two world positions here, so we read the current value with Get World Rotation and applied it with Set World Rotation. To tilt 30 degrees relative to the parent, Set Relative Rotation works. Rather than choosing by whether the parent moves, align the reference of the facing you pass.

Set changes to a specified facing while Add adds to the current one. A continuously spinning windmill can use Add. In that case, deciding "one degree per frame" makes speed depend on update count. For "90 degrees per second", think of adding 90 multiplied by Delta Seconds on that update.

A Quaternion is another format representing rotation. It differs from the three Roll, Pitch, and Yaw angles and is used for composing and interpolating rotations spanning several axes. Our horizontal turret is built with Rotators and dedicated nodes. Learn Quaternions as needed when you handle freely flying craft or camera rotation.

A character's facing can sometimes come from movement settings. To face the movement direction, Character Movement Component's Orient Rotation to Movement and Rotation Rate work. Our approach helps where you want facing controlled separately from movement, such as a turret independent of its base or a security camera.

Turning speed also connects to how the game feels. A slow turret leaves room to circle behind it while a fast one makes staying out of its front hard. Before adding firing conditions and hit detection, tuning just the tracking makes the difference you aim for easier to confirm.

Summary

Build the target facing with Find Look at Rotation, close in from the current facing with RInterp To, and apply it with Set. Separating those roles makes it easier to tell "the direction it faces is wrong" from "how it closes in is wrong".

Once the turret moves, walk the same path and compare whether 2 or 10 suits your game. Beyond memorizing the computation nodes, you can confirm how one number changes the motion's impression.

Reference: Epic's RInterp To, Lerp (Rotator), Find Look at Rotation, Set World Rotation.
